Type 1658

~ 58 mm

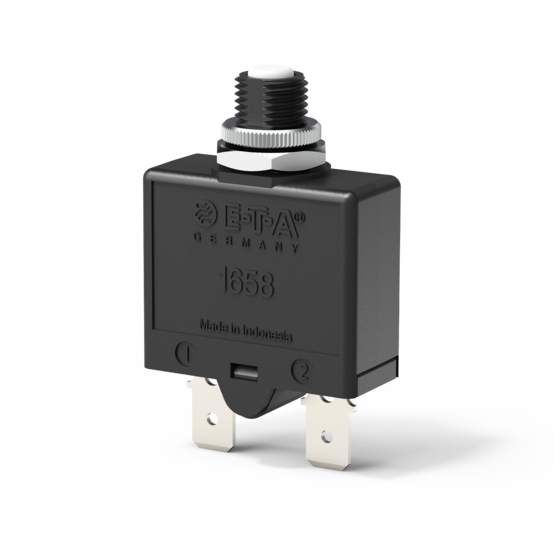

Typ 1658 von E-T-A: Thermischer Schutzschalter in Kleinbauweise mit Gewindehalsbefestigung oder als »Snap-in«-Version.

Description

Very cost effective design to meet international requirements. No exposed metal parts which are, or could become, current-carrying except for terminals. R-type TO CBE to EN 60934.

  • Manual reset, cycling trip free mechanism
  • Extremely small and lightweight
  • UL, CSA, VDE and EN 60934 (IEC 60934) approved
  •  Also available with XR38 PEM

Technical Data

Voltage rating
  • AC 240 V
  • DC 28 V
Current ratings from 5 A up to 30 A
Number of poles single pole
Mounting method flange
threadneck
Terminal design blade terminals
screw terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 5...16 A 1,000 operations at 2 x IN, inductive

17...25 A 1,000 operations at 2 x IN, resistive
Interrupting capacity Icn 5...7 A: 180 A

8...30 A: 200 A
Certificates VDE, UL

Accessories

Order number Description
X20079901

splash cover, transparent

X20128501

splash cover transparent

X22211901/02

splash cover transparent

01 = short



02 = long

Y30019201

hex nut

Y30105902

press to reset plate

Y30229403

knurled nut

Y30229501

hex nut

Y30273201

press to reset plate

Y30320001

mounting nut

Y30667101

mounting nut

Y30711702

knurled nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 28 V
  • Watercraft & Vehicles
