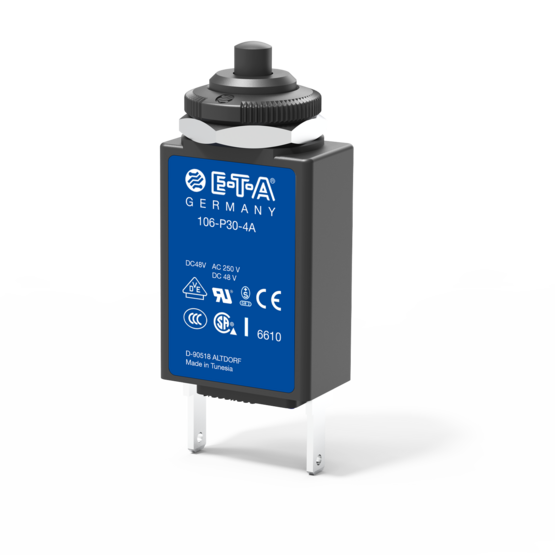

Thermal circuit breaker for threadneck
panel mounting, single pole
Type: 106
Description
Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934), threadneck mounting.
Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings see type 1140-G.
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.05 A until 10 A |
| Number of poles | single pole |
| Mounting method | threadneck |
| Terminal design | blade terminals |
| Actuation | push button |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination | without illumination |
| Typical life |
0.05...5 A: 3,000 operations at 2 x IN, inductive 6...8 A: 500 operations at 2 x IN, inductiv 10 A: 50 operations at 2 x IN, inductiv |
| Interrupting capacity Icn |
0.05...8 A: 6 x IN (AC) 0.05...10 A: 6 x IN (DC) |
| Certificates | VDE, SEV, CSA, UL |
Accessories
| Order number | Description | |
|---|---|---|
| X 201 285 01 |
splash cover transparent |
|
| Y 307 117 02 |
knurled nut |
|
| Y 300 192 01 |
hex nut |
Applications
- Household, Hobby & Garden Equipment
- Lighting technology
- Medical technology
- Minus DC 48 V
- Telecom & Datacom
