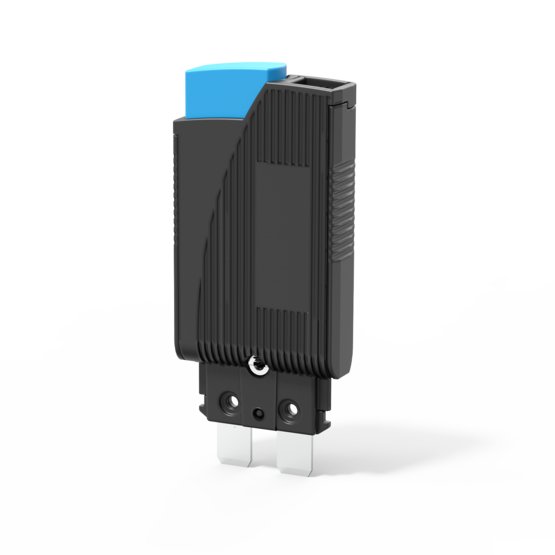

Type: 1180
Description
Miniaturised single pole thermal circuit breaker with switching function optional (push-push actuation). Reliable snap-acting and trip-free mechanism. Approved to CBE standard EN/IEC 60934. S type, TO.
Blade terminals fitting into sockets for rail mounting.
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.1 A until 10 A |
| Number of poles |
single pole |
| Mounting method |
socket rail mounting |
| Terminal design |
blade terminals |
| Actuation |
push button |
| Auxiliary contacts |
without auxiliary contacts |
| Water splash protection |
without water splash protection |
| Illumination |
without illumination |
| Typical life |
6,000 operations at 1 x IN (resistive) 3,000 opeations at 1 x IN (inductive) 500 operations at 2 x IN inductive) |
| Interrupting capacity Icn |
0.1…5 A 6 x IN AC 250 V, DC 65 V 6…10 A 8 x IN AC 250 V, DC 65 V 0.1…0,7 A 25 x IN DC 30 V 0.8…6 A 10 x IN DC 30 V 7…10 A 20 x IN DC 30 V |
| Certificates | VDE, UL, CSA |
Accessories
| Order number | Description | |
|---|---|---|
| X 222 232 01 | bus connection for potential bridging |
|
| X 222 233 01 | terminal block for DIN rail mounting |
|
| X 222 233 02 | terminal block for DIN rail mounting with LED DC 24 V |
|
| X 222 315 02 | terminal block for DIN rail mounting with LED DC 24 V | |
| X 222 316 01 | terminal block for DIN rail mounting | |
| X 222 317 01 | feed supply terminal with spring-loaded terminals | |
| X 222 318 01/02 |
jumper 01 = 2pole 02 = 3pole |
|
| Y 307 373 01 | insulation barriers | |
| Y 307 374 01 | label | |
| Y 307 375 01 | label | |
| Y 307 507 01 | cover | |
| Y 307 508 01 | label |
Applications
- Aerospace
- Automation
- Chemical, Oil & Gas
- Lighting technology
- Mechanical engineering
- Minus DC 28 V
- Minus DC 48 V
- Minus DC 72 V
- Pharmaceutical & Food
- Telecom & Datacom
