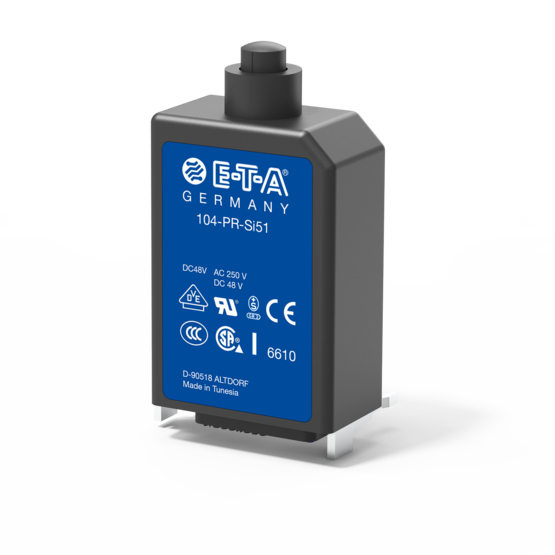

Typ 104-PR von E-T-A: Einpoliger, thermischer Schutzschalter in Kleinbauweise.

Description

Data sheet

Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934) for PCB mounting.

Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings see type 1140.

Technical Data

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
Current ratings from 0.05 A up to 10 A
Number of poles single pole
Mounting method printed circuit board
Terminal design solder terminals
Actuation push button
Auxiliary contacts with auxiliary contacts
without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 0.05...5 A: 3,000 operations at 2 x IN, inductive

6...8 A: 500 operations at 2 x IN, inductive

10 A: 50 operations at 2 x IN, inductive
Interrupting capacity Icn 0.05...8 A: 6 x IN (AC)

0.05...10 A: 6 x IN (DC)
Certificates VDE, SEV, CSA, UL

Accessories

Order number Description
X20128501

splash cover transparent
Y30711702

knurled nut
Y30019201

hex nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
