2-5700
Thermal circuit breaker for threadneck
panel mounting, push-push actuation

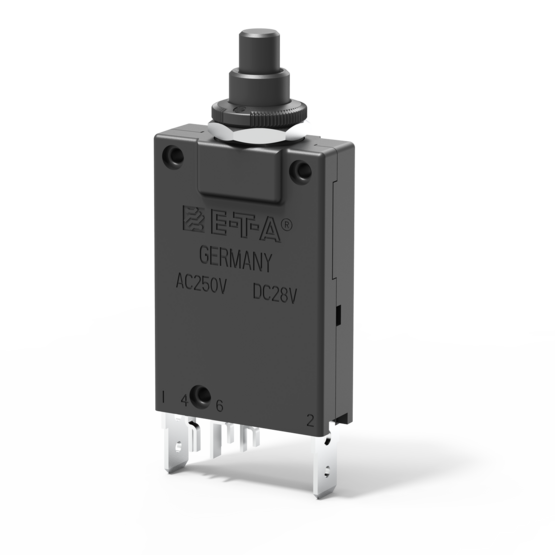

Type: 2-6400
Description
Single pole thermal circuit breakers with push-to-reset, tease-free, trip-free, snap action mechanism (R type TO CBE to EN 60934). Featuring auxiliary contacts (1 x N/C; 1 x N/O) as standard. Options include an additional unprotected circuit tap (-A3).
Approved to CBE standard EN 60934 (IEC 60934).
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.05 A until 16 A |
| Number of poles | single pole |
| Mounting method | threadneck |
| Terminal design |
blade terminals solder terminals |
| Actuation | push button |
| Auxiliary contacts | with auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination | without illumination |
| Typical life | 5,000 operations at 2 x IN, inductive |
| Interrupting capacity Icn | 10 x IN |
| Certificates | VDE, CSA, UL |
Accessories
| Order number | Description | |
|---|---|---|
| X 200 798 02 |
splash cover, transparent |
|
| X 200 799 01 |
splash cover, transparent |
|
| X 200 801 03 |
splash cover black with O-ring |
|
| X 200 801 08 |
splash cover transparent with O-ring |
|
| X 201 296 01 |
splash cover black without O-ring |
|
| X 201 296 03 |
splash cover black with O-ring |
|
| X 210 663 01 |
splash cover transparent with knurled nut |
|
| X 210 739 01 |
splash cover black with hex nut |
|
| Y 300 116 02 |
hex nut |
|
| Y 300 192 01 |
hex nut |
|
| Y 302 065 01 |
knurled nut |
|
| Y 307 117 02 |
knurled nut |
Applications
- Household, Hobby & Garden Equipment
