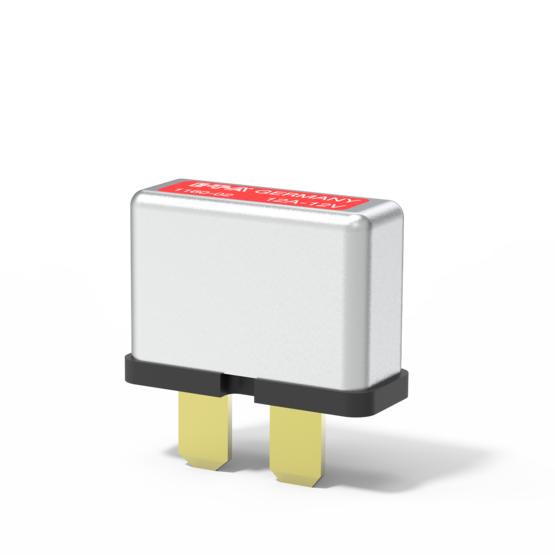

Thermal circuit breaker, with controlled self-resetting mechanism, specially suited to installation in inaccessible locations. Under overload conditions the circuit breaker contacts will open to protect the load circuit. A low current excitation circuit ensures that the contacts remain open thereby avoiding the hazards of automatic reset operation. The circuit breaker is reset by switching off the supply circuit for a short period. Class 2 device, contacts stay open until voltage is removed.
Type II to SAE J 553.
from 12 A until 30 A
|Number of poles||
without auxiliary contacts
|Water splash protection||
without water splash protection
|Typical life||300 operations at 2 x IN|
|Interrupting capacity Icn||200 A, L/R = 2.5 ms|
- Commercial Vehicles
- Lighting Equipment
