Type: 3120-N
Description
~ 53 mm

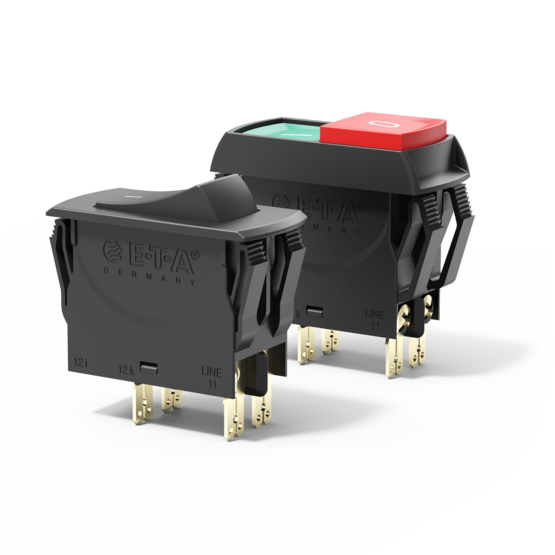

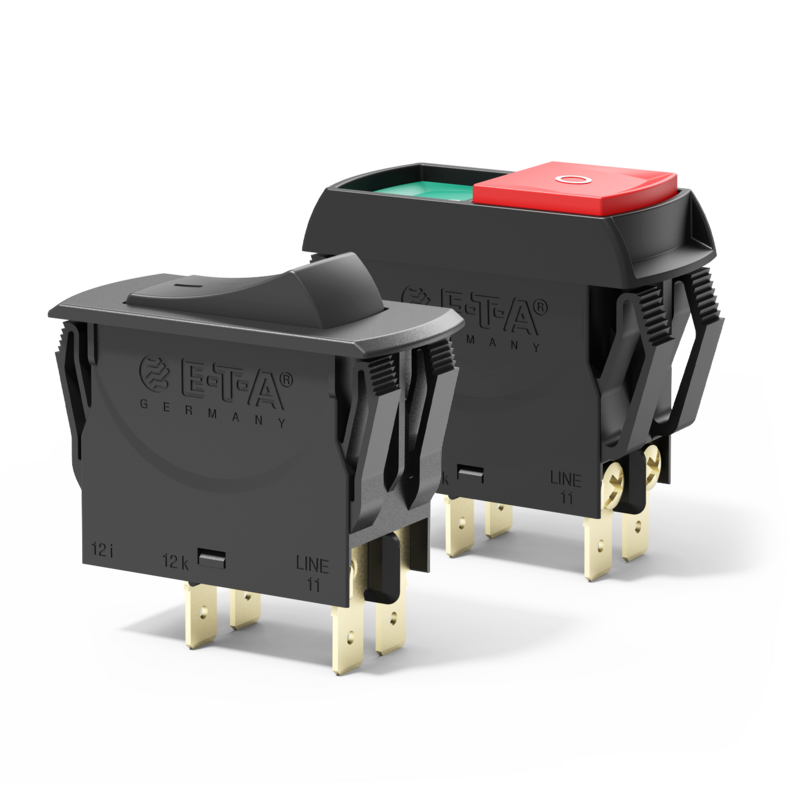

The 3120-N...-...T1-... thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal.
Type 3120-N...-...T1-... is ideally suited for overload protection of motors, pumps, transformers and cables. After tripping, it can reliably, easily and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked.
Type 3120-N is also available with thermal-magnetic trip (please see data sheet circuit breaker p. 19 ff).
Your benefits:
- Maximum equipment availability is ensured by overload protection perfectly matched with the loads (prevention of nuisance tripping) and quick resettability
- Reduced mounting and wiring time
- Space-saving design
- Reduced disposition and storage costs
- Increased overall reliability
Type 3120-N is also available as a switch in accordance IEC/EN 61058 (see data sheet switch only).
Technical Data
| Voltage rating |
|
| Current ratings |
from 0.1 A until 20 A (up to 30 A to special order, single pole only) |
| Number of poles |
single pole double pole |
| Mounting method |
flange |
| Terminal design |
blade terminals screw terminals |
| Actuation |
push button rocker |
| Auxiliary contacts |
with auxiliary contacts without auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination |
with illumination without illumination |
| Typical life |
single pole AC 240 V: 0,1...20 A 30 000 operations at 1 x IN, inductive DC 50 V: 0,1...4 A 30 000 operations at 1 x IN, inductive 4,5...16 A 30 000 operations at 1 x IN, resistive DC 28 V: 0,1...20 A 30 000 operations at 1 x IN, inductive double pole AC 240 V: 0,1...16 A 50 000 operations at 1 x IN, inductive 17...20 A 30 000 operations at 1 x IN, inductive DC 50 V: 0,1...16 A 50 000 operations at 1 x IN, inductive 17...20 A 10 000 operations at 1 x IN, inductive |
| Interrupting capacity Icn |
(IEC/EN 60934) 1, 2-pole: IN 0,1 ... 2 A, UN AC 240 V / DC 50 V, Icn 10 x IN 1-pole: IN 2,5 ... 10 A, UN DC 50 V, Icn 50 A 1-pole: IN 2,5 ... 20 A, UN AC 240 V / DC 28 V, Icn 200 A 2-pole: IN 2,5 ... 20 A, UN DC 50 V, Icn 250 A 2-pole: IN 2,5 ... 20 A, UN AC 240 V / DC 28 V, Icn 300 A |
| Certificates | VDE, UL, CSA, CCC, KC |
Accessories
Accessories
| Order number | Description | |
|---|---|---|
| Y 312 140 01 | plug-in connector | |
| Y 304 275 01 | water splash cover black | |
| Y 303 862 01 | terminal adapter | |
| Y 303 068 01 | insulated cover | |
| Y 303 675 01 |
spacer for -F3/N3... panel thickness < 2 mm |
|
| Y 303 675 02 |
spacer for -F3/N3... panel thickness < 4 mm |
|
| Y 303 676 01 | spacer for -F5/N5... | |
| Y 303 885 31 | blanking piece |
Applications
Applications
- Apparate- und Automatenbau
- Household, Hobby & Garden Equipment
- Medical Equipment
Scopes of applications
Medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, offices machines, audio equipment, machine tools
