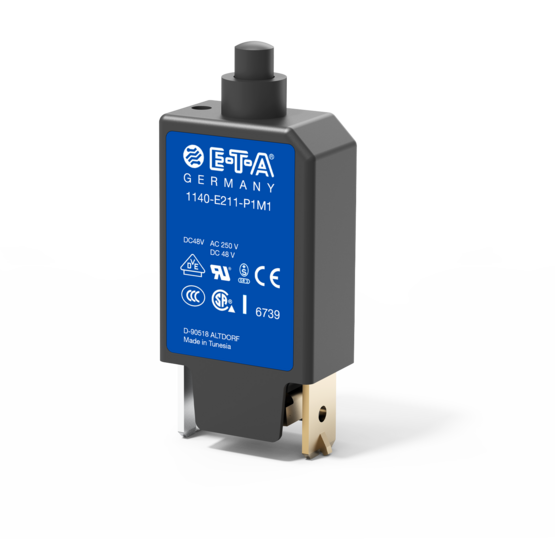

Thermal circuit breaker, integral type,
single pole
Type: 1140-E
Description
Miniaturised single pole thermal circuit breaker with push-to-reset tease-free, trip-free, snap action mechanism (R-type TO CBE to EN 60934), integral type.
For lower current ratings see types 104.
Approved to CBE standard EN 60934 (IEC 60934).
| Voltage rating |
|
|---|---|
| Current ratings |
from 3.5 A until 16 A |
| Number of poles | single pole |
| Mounting method | integral mounting |
| Terminal design | blade terminals |
| Actuation | push button |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination | without illumination |
| Typical life |
3.5...8 A: 1,000 operations at 2 x IN, resistive 9...16 A: 100 operations at 2 x IN, inductive |
| Interrupting capacity Icn |
3.5...8 A: 8 x IN 9...16 A: 120 A |
| Certificates | VDE, CSA, UL |
Accessories
| Order number | Description | |
|---|---|---|
| X 201 285 01 |
splash cover transparent |
|
| Y 300 192 01 |
hex nut |
|
| Y 307 117 02 |
knurled nut |
Applications
- Household, Hobby & Garden Equipment
- Lighting technology
- Medical technology
- Minus DC 48 V
- Telecom & Datacom
