Type 1110
~ 66 mm
Description

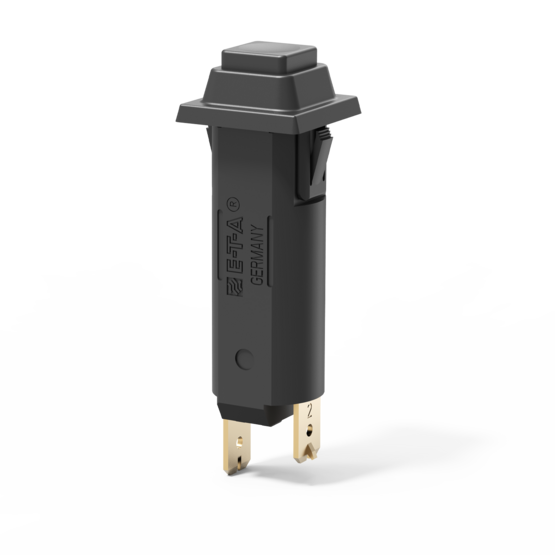

Single pole switch/thermal circuit breaker (S-type TO CBE to EN 60934) with tease-free, trip-free, snap action mechanism. Designed for snap-in panel mounting utilising round hole or industry standard fuse-holder cut-out dimensions. Featuring an ergonomically styled two colour actuator with indicator band clearly showing the tripped/OFF position.
Approved to CBE standard EN 60934 (IEC 60934).
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.05 A up to 16 A |
| Number of poles | single pole |
| Mounting method | flange |
| Terminal design | blade terminals |
| Actuation | push button |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination | without illumination |
| Typical life |
AC: 0,05...10 A 10 000 operations DC: 0,05...10 A 6 000 operations DC: 12...16 A 2 000 operations |
| Interrupting capacity Icn |
AC 250 V: 0.05...10 A: 8 x IN DC 50 V: 0.05...6.5 A: 65 x IN 7...16 A: 130 A DC 28 V: 7...10 A: 200 A |
| Certificates | VDE, CSA, UL |
Accessories
| Order number | Description | |
|---|---|---|
| Y30474501 |
splash cover transparent |
|
| Y30560201 |
splash cover black |
Applications
- Household, Hobby & Garden Equipment
- Lighting technology
- Medical technology
- Minus DC 48 V
- Telecom & Datacom
- Watercraft & Vehicles
