Type 1410-L1

~ 25 mm

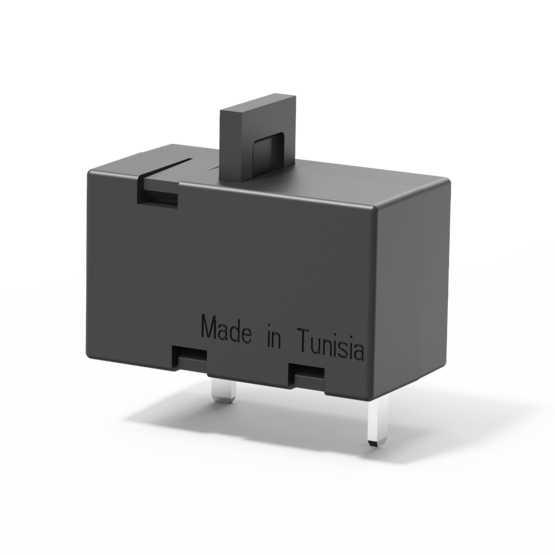

Typ 1410-L1 von E-T-A: Einpoliger Schutzschalter in Kleinbauweise. Sehr flinke Kennlinie durch spezielles Auslösesystem

Description

Single pole press-to-reset thermal circuit breaker with extremely fast overload switching performance (R-type TO CBE to EN 60934). Miniaturised construction minimises PCB real estate required. Largely temperature-insensitive.

Technical Data

Voltage rating	AC 240 V DC 28 V (DC 50 V upon request) UL/CSA: AC 250 V UL/CSA: DC 50 V
Current ratings	from 0.63 A up to 10 A
Number of poles	single pole
Mounting method	integral mounting printed circuit board
Terminal design	solder terminals
Actuation	push button
Auxiliary contacts	without auxiliary contacts
Water splash protection	without water splash protection
Illumination	without illumination
Typical life	500 operations at 2 x I_N, AC, resistive 500 operations at 2 x I_N, DC, inductive
Interrupting capacity I_cn	0.63...2 A: 12 x I_N 2.5...8 A: 8 x I_N AC, max 50 A 10 A: 6 x I_N AC 3.15...10 A: 10 x I_N DC
Certificates	VDE, CSA, UL
