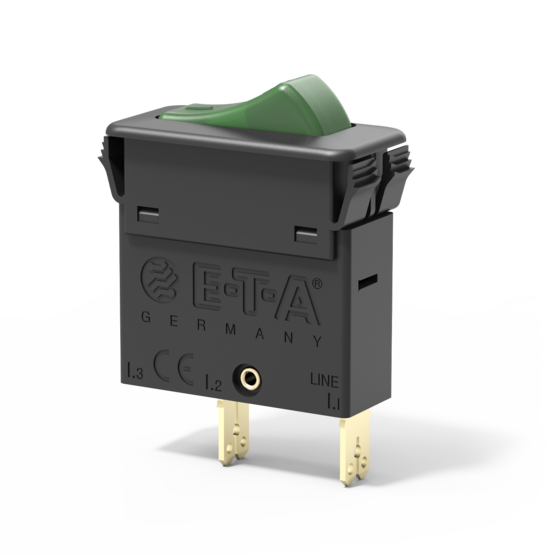

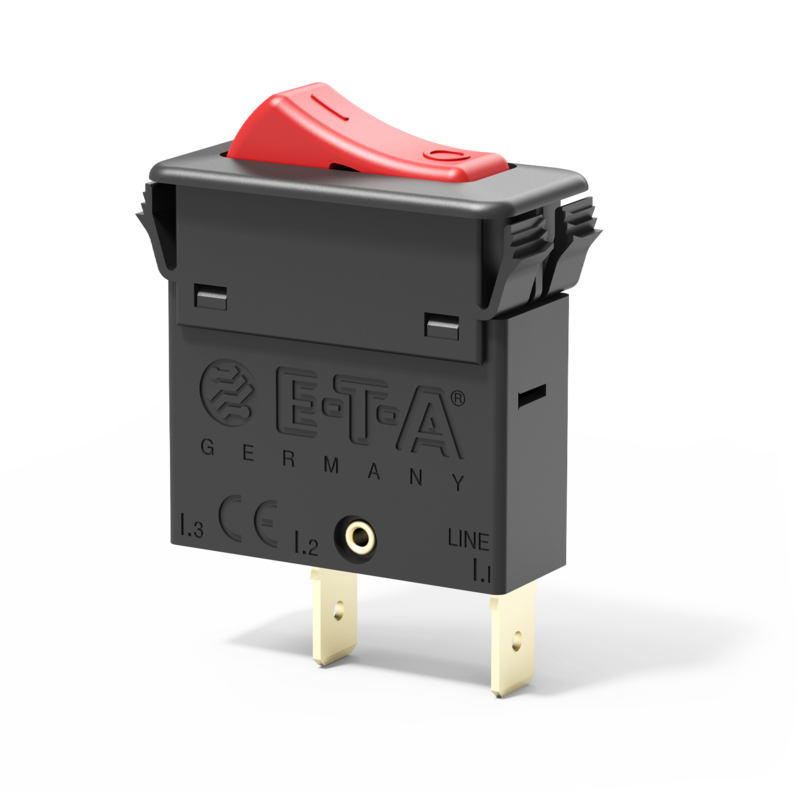

Type: 3130-F


Single, two and three pole rocker switch/thermal trip free circuit breakers (S-type TO CBE to EN 60934) of compact design for snap-in panel mounting. Available either with protection on one/both/all poles or, in the case of the double pole version, protection on one pole only. Illumination is optional and there is a choice of rocker colours.

Approved to CBE standard EN 60934 (IEC 60934).

Voltage rating
  • 3 AC 415 V
  • AC 240 V
  • DC 50 V
  • UL/CSA: 3 AC 250 V
  • UL/CSA: AC 250 V
Current ratings from 0.1 A until 20 A  1 pole
from 0.1 A until 16 A  2 and 3 pole
Number of poles single pole
double pole
three pole
Mounting method flange
Terminal design blade terminals
screw terminals
Actuation rocker
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
without illumination
Typical life 30,000 operations at 1 x IN, inductive, 1 and 3 pole

50,000 operations at 1 x IN, inductive, 2 pole
Interrupting capacity Icn 0.1...2 A: 10 x IN

2.5...20 A: 150 A 1 pole

2.5...16 A: 250 A 2 pole

2.5...12 A: 150 A 3 pole

14...16 A: 130 A 3 pole
Certificates VDE, UL, CSA


Order number Description
X 221 258 01 splash cover transparent for 3-pole version
X 222 420 ... rocker, symbols/legends available


  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
  • Watercraft & Vehicles
