Type 4130

~ 88 mm

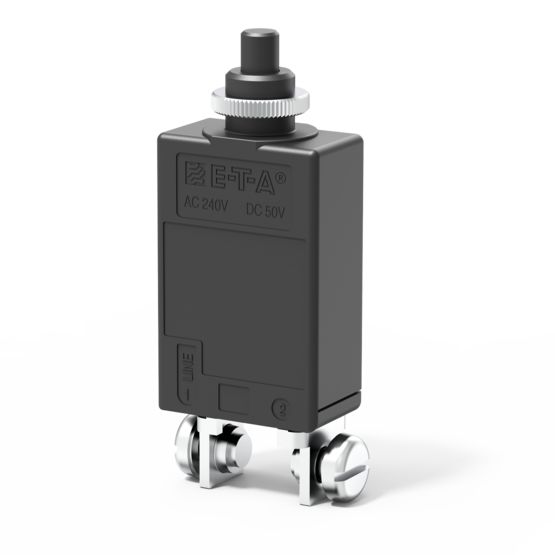

Typ 4130 von E-T-A: Einpoliger, thermischer Schutzschalter mit Gewindehalsmontage mit zuverlässigem Schaltverhalten.

Description

Single pole high performance thermal circuit breaker, with push-to-reset tease free, trip-free snap action mechanism (R-type TO CBE to EN 60934). Designed for threadneck panel mounting and for applications with a high fault current switching requirement.

Approved to CBE standard EN 60934 (IEC 60934).

Technical Data

Voltage rating
  • AC 240 V
  • DC 50 V
Current ratings from 20 A until 70 A
Number of poles single pole
Mounting method threadneck
Terminal design screw terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 20...70 A 500 operations at 2 x IN (DC), resistive

20...80 A 500 operations at 2 x IN (AC), inductive
Interrupting capacity Icn 800 A
Certificates VDE, UL

Accessories

Order number Description
X20080103

splash cover black with O-ring

X20080108

splash cover transparent with O-ring

X20129601

splash cover black without O-ring

X20129603

splash cover black with O-ring

X20129608

splash cover transparent with O-ring

X21066301

splash cover transparent with knurled nut

Y30011602

hex nut

Y30206501

knurled nut

Applications

  • Automation
  • Commercial Vehicles
  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Minus DC 48 V
  • Telecom & Datacom
