Type 1610-92
~ 30 mm
Description

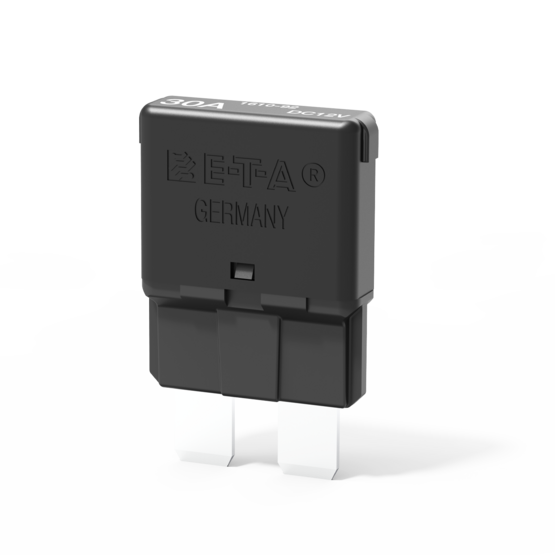

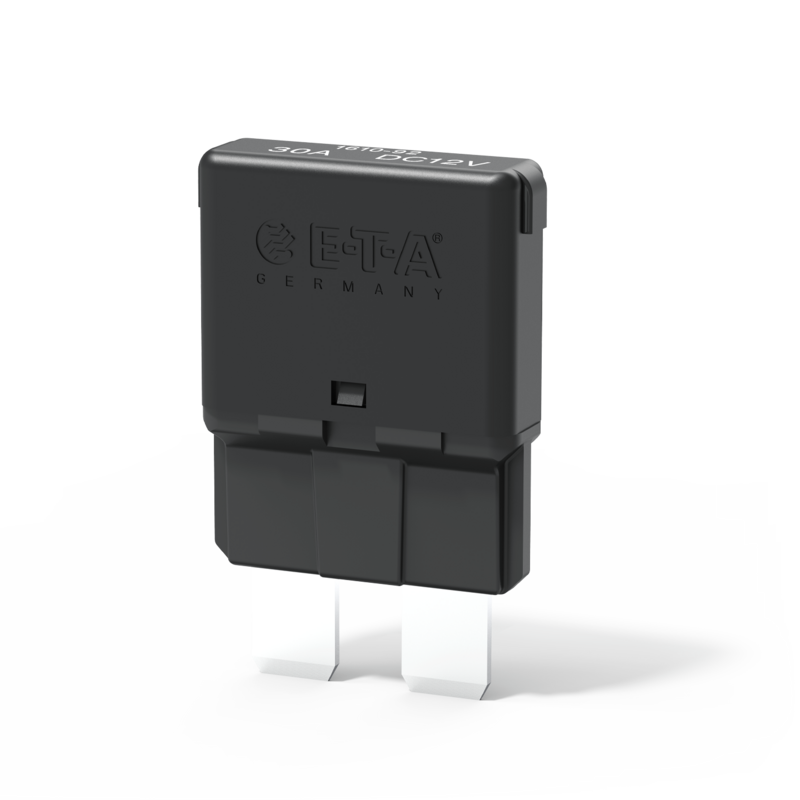

Single-pole, thermal automotive circuit protector in a very slim design. Also available with reset button and manual release for 24 V. Interchangeable in the connection area with blade fuse inserts in accordance with DIN 72581 Part 3, ISO 8820-3 Type C or ISO 10924 Form CB15.
Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses). Fast trip curve to ISO 10924 for direct replacement of automotive fuses.
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 5 A up to 30A |
| Number of poles | single pole |
| Mounting method | socket |
| Terminal design | blade terminals |
| Actuation | without actuation |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination | without illumination |
| Typical life | 300 operations at <= 50 A |
| Interrupting capacity Icn |
>= 3 break operations at 150 A, or >= 1 break operation at 2,000 A |
Accessories
| Order number | Description | |
|---|---|---|
| 12-P10/-J20/-A10 |
sockets |
|
| X21058801-04 |
Connector bus links -P10 01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue |
|
| X21115701/02 |
busbar for mounting socket 01 = with terminal
02 = without terminal |
Applications
- Automobiles
- Commercial Vehicles
- Lighting technology
- Watercraft & Vehicles
