Type: 2-5700

Description

~ 79 mm

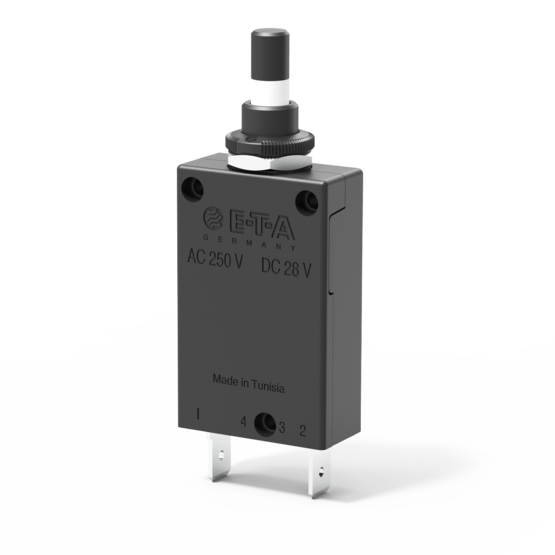

Typ 2-5700 von E-T-A: Einpoliger, thermischer Schutzschalter mit verschiedenen Montagemöglichkeiten.

Single pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap action mechanism. Type 2-5700 can be supplied as a push-push switch/circuit breaker (R-type TO CBE to EN 60934 in press-to-reset configuration; S-type with push-push operation), threadneck panel mounting. Options include an additional unprotected circuit tap (-A3).

Approved to CBE standard EN 60934 (IEC 60934).

Voltage rating	AC 250 V DC 28 V UL/CSA: DC 50 V
Current ratings	from 0.05 A until 25 A
Number of poles	single pole
Mounting method	threadneck
Terminal design	blade terminals screw terminals
Actuation	push button
Auxiliary contacts	without auxiliary contacts
Water splash protection	with water splash protection without water splash protection
Illumination	without illumination
Typical life	0.05...16 A 5,000 operations at 2 x I_N, inductive 17...25 A 5,000 operations at 2 x I_N, resistive
Interrupting capacity I_cn	0.05...2.5 A: 8 x I_N 3...5 A: 20 x I_N 6...12 A: 200 A (higher interrupting capacity available to special order) 13...25 A: 400 A
Certificates	VDE, CSA, UL, SEV, CCC

Accessories

Order number	Description
X 200 798 02	splash cover, transparent
X 200 799 01	splash cover, transparent
X 200 801 03	splash cover black with O-ring
X 200 801 08	splash cover transparent with O-ring
X 201 296 01	splash cover black without O-ring
X 201 296 03	splash cover black with O-ring
X 210 663 01	splash cover transparent with knurled nut
X 210 739 01	splash cover black with hex nut
Y 300 116 02	hex nut
Y 300 192 01	hex nut
Y 302 065 01	knurled nut
Y 303 563 01	busbar
Y 307 117 02	knurled nut
