Type: 4140

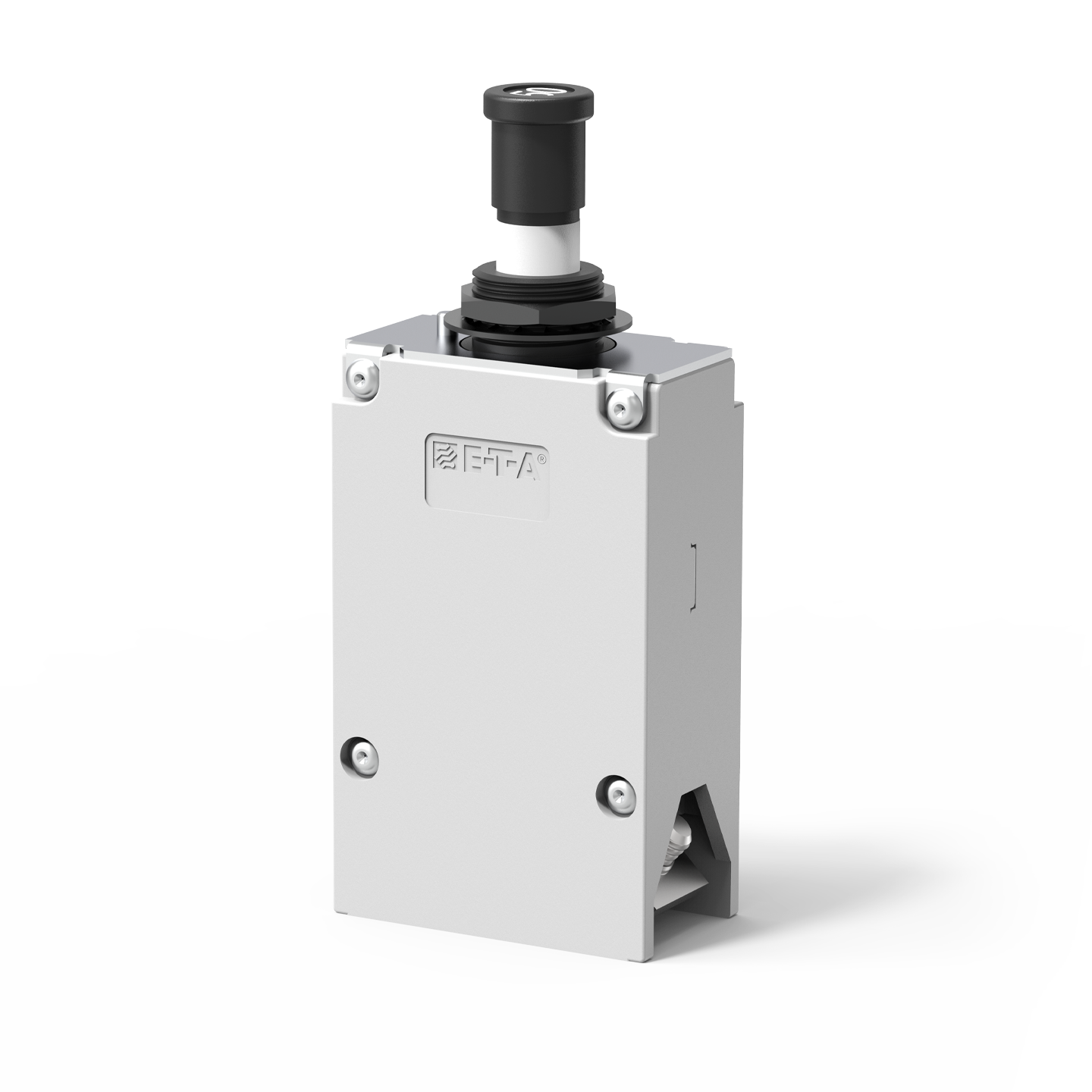

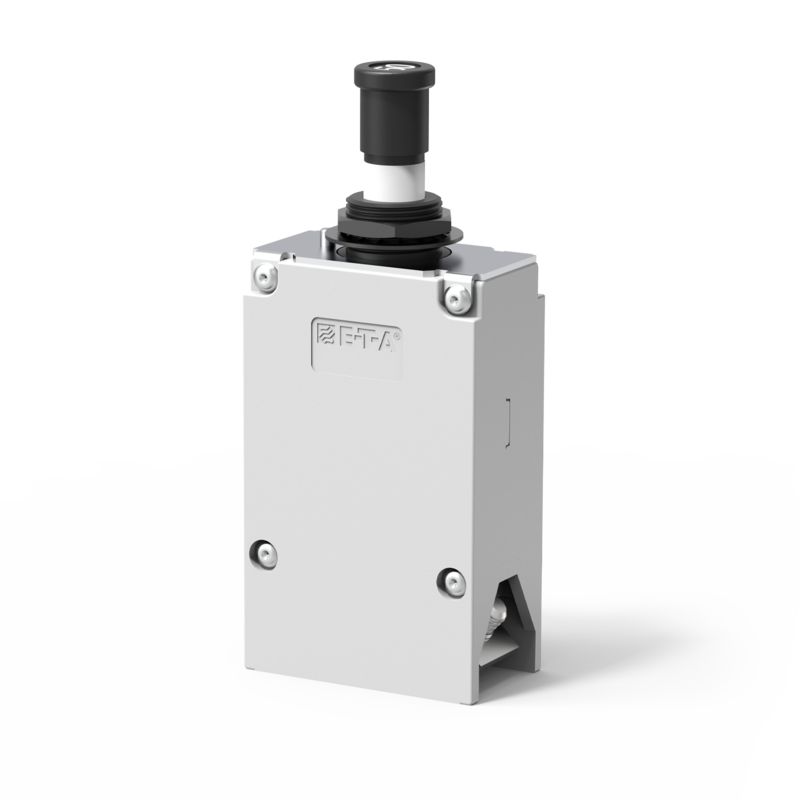

Single pole, thermal circuit breaker with trip-free mechanism, push/pull on/off manual actuation (M-type TO CBE to EN 60934) and temperature compensation. An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted, available in metric and US configurations. The robust design makes type 4140 suitable for extremely harsh conditions.

Data sheet

Technical Data

Voltage rating:
  • AC 115 V (400 Hz)
  • DC 28 V
Current ratings:
from 20 A to 50 A
Typical life:
5,000 operations mechanical and
2,500 operations at 1 x IN
Interrupting capacity Icn:
AC 115 V (400 Hz): 1,500 A
DC 28 V: 4,000 A
Number of poles:
  • single pole
Mounting method:
  • threadneck
Terminal design:
  • screw terminals
Actuation:
  • manual release
  • push button
Auxiliary contacts:
  • with auxiliary contacts
  • without auxiliary contacts
Water splash protection:
  • with water splash protection
  • without water splash protection
Illumination:
  • without illumination

Accessories

Order numberDescription
X 200 801 15/16splash cover black with O-ring
X 200 803 01actuator extension
Y 307 004 01-05identification collar
X 200 801 17/18splash cover transparent with O-ring

Applications

  • Aerospace

Downloads

Data sheet
