EXR10
Special solid state relay with diagnostic functionalities and overcurrent protection
Type: EXR20
Description

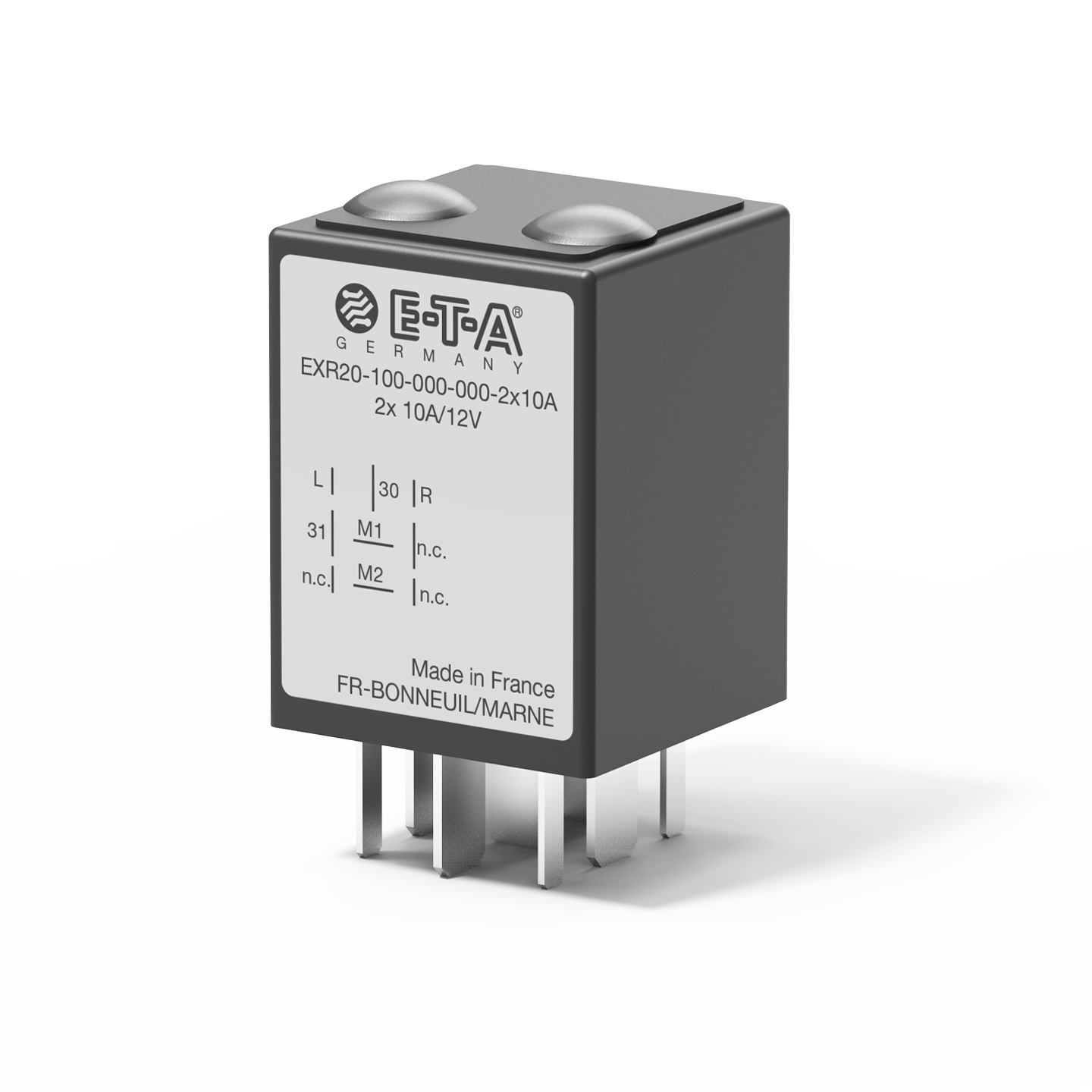

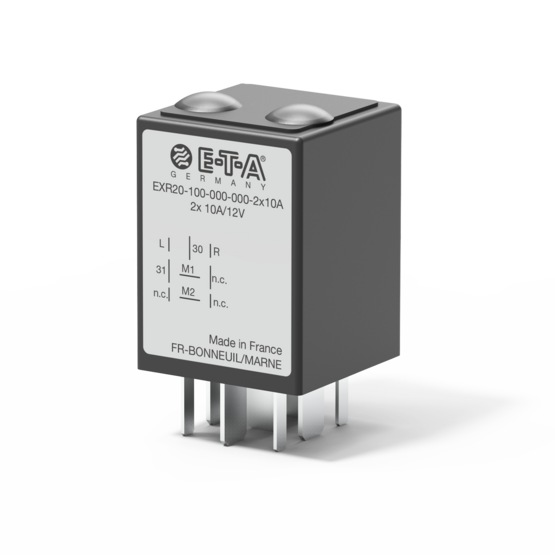

The EXR20 (Electronic eXtra Relay) has specially been designed for the control of electric motors. It combines a microcontroller with mechanical contacts and additional overcurrent protection.
- High flexibility for your application through clockwise and counterclockwise rotation of the electric motor.
- Convenient and reliable control of electric motors with only two signal outputs.
- Enhanced safety for your application through an adjustable overcurrent protection.
The EXR20 special relay is available for DC 12 V and DC 24 V applications and is suitable for standard automotive relay sockets to ISO 7588.
| Voltage rating |
DC 12 V DC 24 V |
|---|---|
| Continuous current | 10 A |
| Number of poles | 2-pole |
| Temperature range | -40° C … +85° C |
| Terminal design | ISO 7588 MINI Terminal blocks |
| Mounting method | standard automotive relay socket |
| Design | Cubic enclosure 30 mm x 30 mm x 40 mm |
| Feature | Solid state relay especially for motor controller with right/left rotation |
| Contact system type | electronic |
Applications
- Agricultural and forestry machinery
- Bus: Transit and School
- Construction machinery
- Heavy truck
- Marine
- Specialty vehicles
Scopes of applications
-
Motor control relay with clockwise and counterclockwise rotation, especially for electric motors.
