Type: EXR10

Description

~ 80 mm

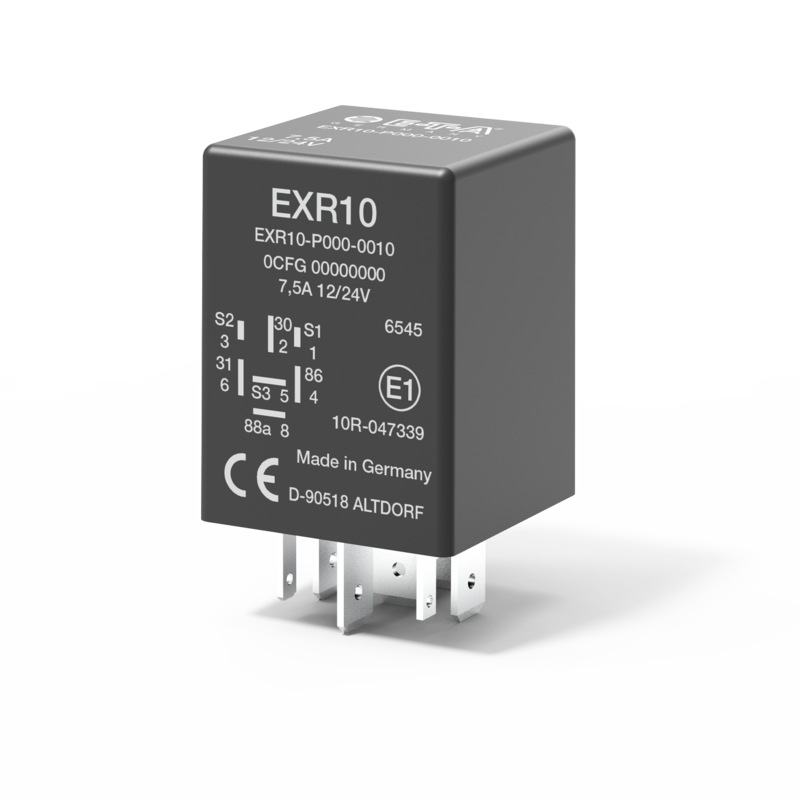

Typ EXR10 von E-T-A: Das elektronische Spezialrelais EXR10 (Electronic eXtra Relay) beinhaltet zahlreiche Spezialfunktionen.

The EXR10 special solid state relay holds a number of special functionalities in a single device, including:

  • Diagnostic functions (e.g. undervoltage detection)
  • Timer function
  • Relay function
  • Protective function

Main benefits:

  • Reduction of complexity through integral overcurrent protection.
  • Flexible use in the vehicle through customised adaptation of the devices.
  • Extremely durable and wear-free design through an electronic contact system.

The EXR10 special relay is available for DC 12 V and DC 24 V applications and is suitable for standard automotive relay sockets to ISO 7588.

Main functions as well as overcurrent protection, if necessary switching thresholds or time windows of the EXR10 can be custom designed with our configurator. Thus you receive a device that is exactly tailored to the requirements of your application. For specification please use our relay configurator:

Relay configurato (international)

Relay configurator (US)

Relay configurator (UK)

Voltage rating of load DC 12 V/ DC 24 V
Continuous current 30 A
Physical isolation of load circuit channels / no. of poles
1 (NO)
Temperature range -40° C … +85° C
Terminal design blade terminals for ISO 7588 MINI socket
Mounting method standard automotive relay socket
Design Cubic enclosure dimensions 30 mm x 30 mm x 40 mm
Feature Versatile mini control unit in MINI design. Customer-specific software, configurable on the E-T-A homepage.
Contact system type electronic

Applications

  • Agricultural and forestry machinery
  • Automotive
  • Bus: Transit and School
  • Construction machinery
  • Heavy truck
  • Marine
  • Specialty vehicles

Scopes of applications

  • Alternative for applications requiring intelligent additional functionalities. A control unit is not required.
