Special solid state relay with diagnostic functionalities and overcurrent protection

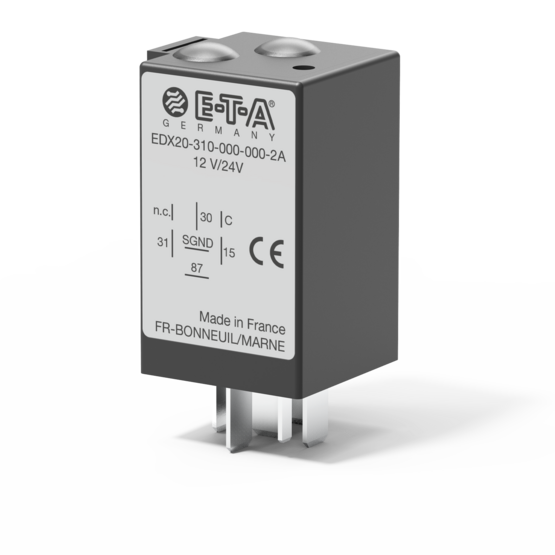

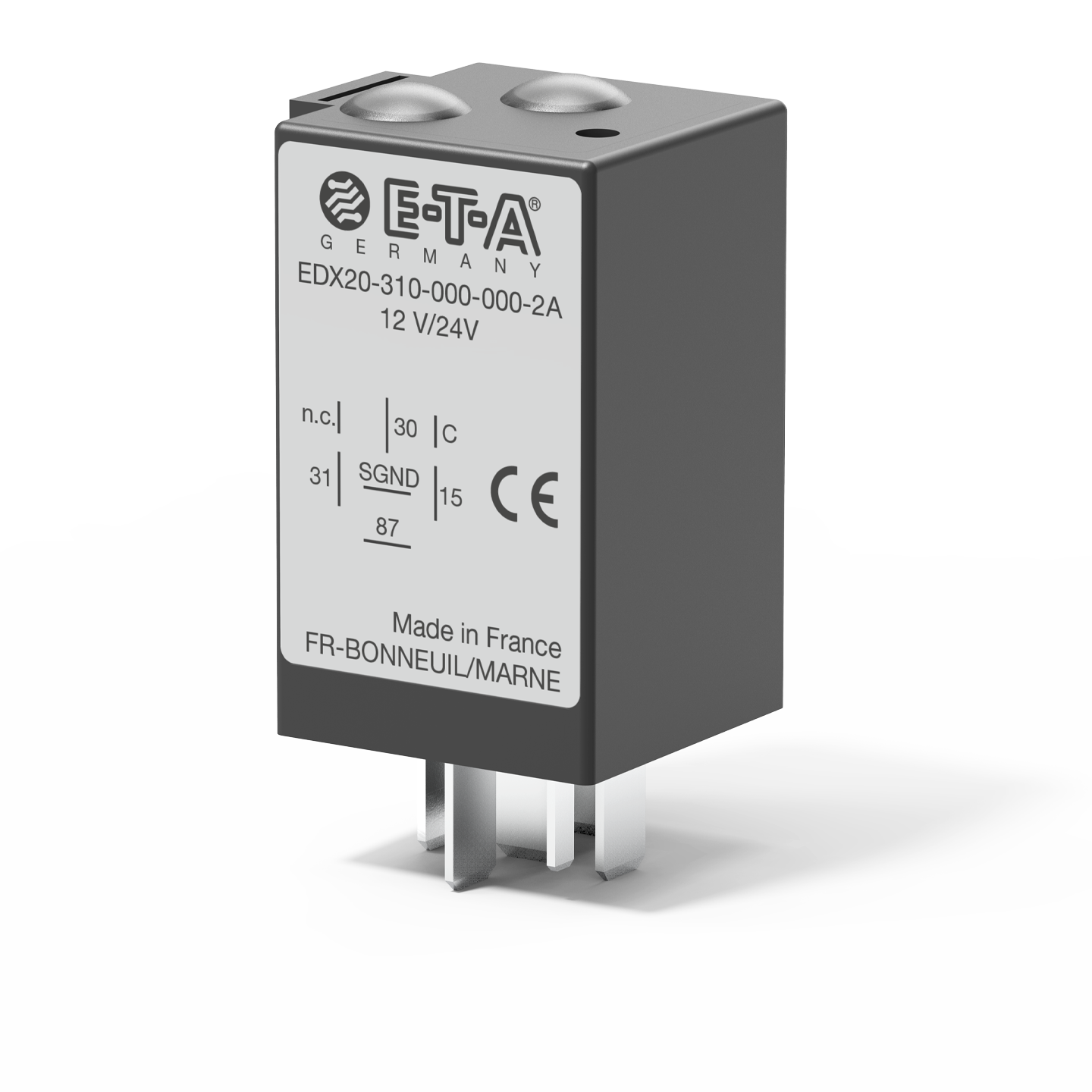

The EDX20 is a voltage stabiliser in a relay enclosure. It keeps the output voltage at a constant level even if the input voltage fluctuates (step-up and step-down converter).
The voltage stabiliser has a range of versatile properties such as adjustment of the output voltage between 9 V and 30 V, monitoring of the system voltage, status indication by means of LED and temperature monitoring.
The EDX20 relays are available for DC 12 V and DC 24 V applications and are suitable for standard automotive relay sockets to ISO 7588 (ISO Mini).
|Voltage rating||DC 12 V/DC 24 V|
|Continuous current||2 A|
|Temperature range||-40° C … +85° C|
|Terminal design||ISO 7588 MINI Terminal blocks|
|Mounting method||standard automotive relay socket|
|Design||Cubic enclosure 30 mm x 30 mm x 40 mm|
|Feature||Voltage stabiliser in a practical relay housing|
