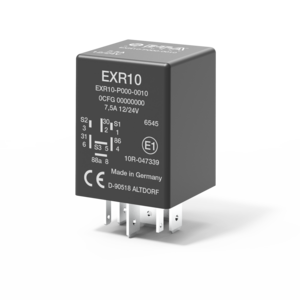

EXR10
Special solid state relay with diagnostic functionalities and overcurrent protection
Type: EDX10
Description

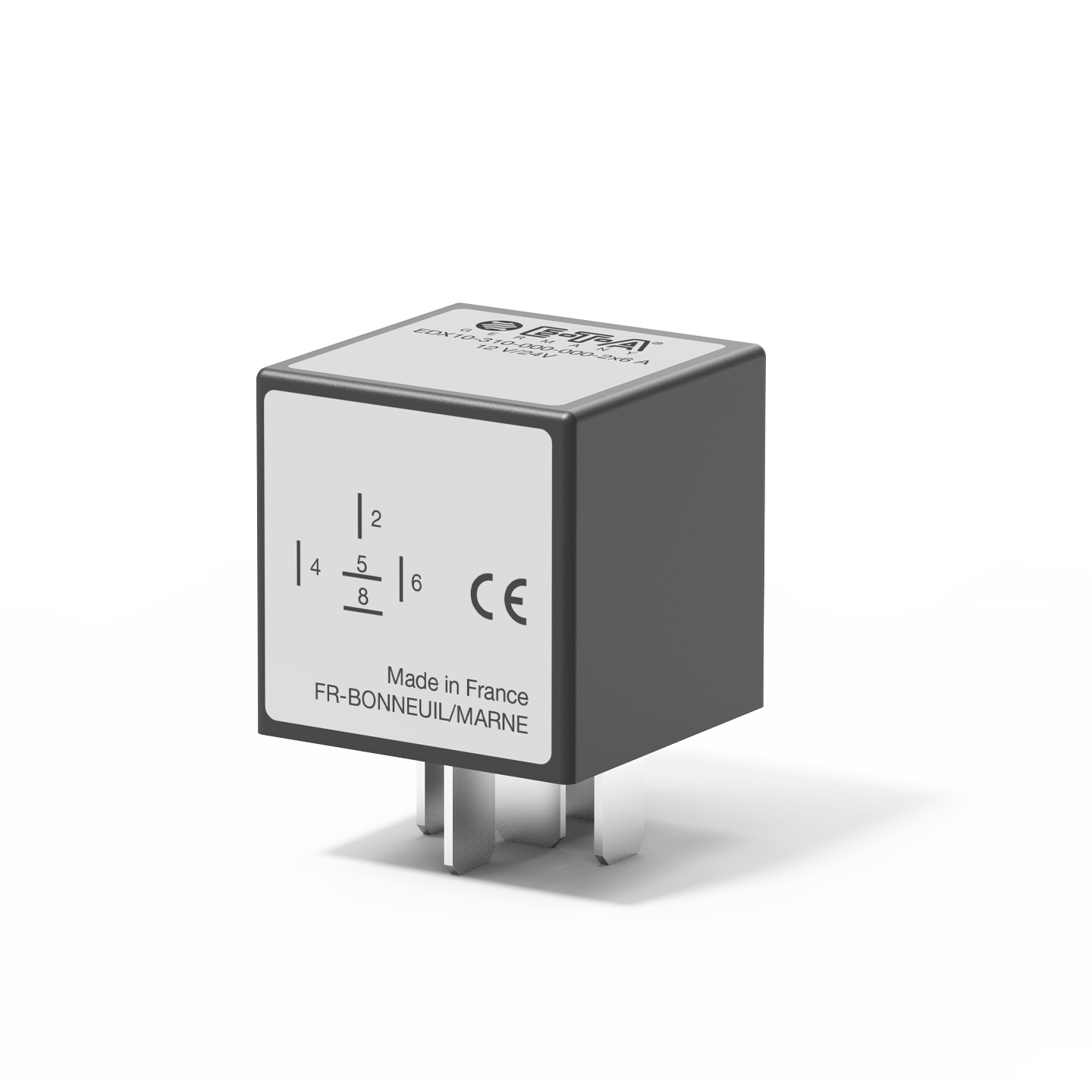

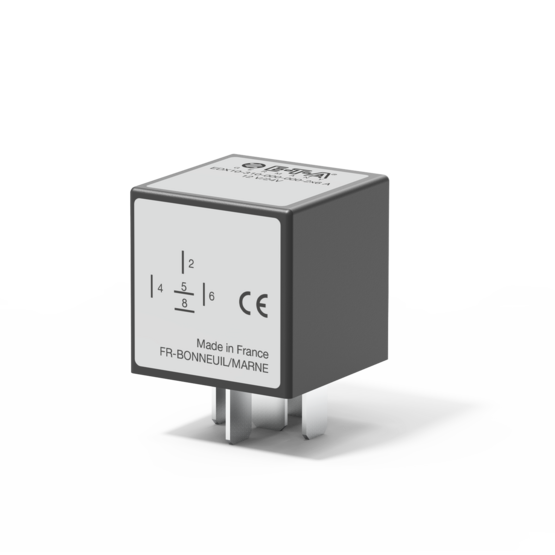

The EDX10 features a relay housing with built-in diodes. It is particularly used for retrofit or rework or vehicles.
The EDX10 is available both in a ready configuration with two or four diodes and a period inverse peak voltage of 400 V, 600 V or 1300 V and with individual population on the occasion of a customer-specific project.
This diode array is often used as rectifier diodes or bridge rectifiers.
- Easy and quick mounting during vehicle retrofit. The diodes can easily be mounted in the relay socket. No extra space required.
- Time-savings during maintenance of devices. Defective diodes can easily be replaced in the relay housing.
The EDX10 relays are available for DC 12 V and DC 24 V applications and are suitable for standard automotive relay sockets to ISO 7588 (ISO Mini).
| Voltage rating | DC 12 V/DC 24 V |
|---|---|
| Continuous current | 4 A |
| Temperature range | -40° C … +85° C |
| Terminal design | ISO 7588 MINI Terminal blocks |
| Mounting method | standard automotive relay socket |
| Design | Cubic enclosure 30 mm x 30 mm x 30 mm |
| Feature | Up to 4 diodes in different configurations in a practical relay housing. |
Applications
- Agricultural and forestry machinery
- Bus: Transit and School
- Construction machinery
- Heavy truck
Scopes of applications
- Rectifier diodes
- Bridge rectifiers
