Type E-1072-128

99 mm

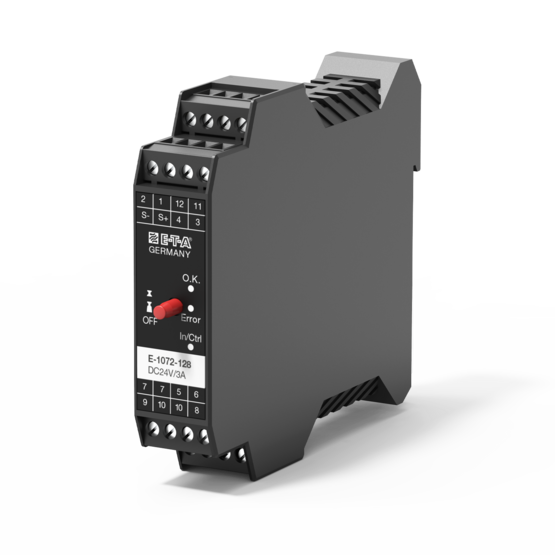

Typ E-1072-128 von E-T-A: Entspricht im Rahmen der CE-Kennzeichnung nach der EG-Maschinenrichtlinie der EN 60204 Teil 1.

Description

Data sheet

The SSRPC E-1072-128 fully complies with the requirements of the EC Machinery Directive or EN 60204 part 1 »Safety of Machinery – Electrical Equipment of Machines« in systems with ungrounded power supply (»IT system«). The E-1072-128 is a double pole solid state remote power controller for electromagnetic valves (solenoids), magnetic brakes and clutches with a rated voltage of DC 24 V and a max. current rating of 3 A. Besides a genuine circuit breaker function it offers additional diagnostic functions. The SSRPC type E-1072-128 can be used as a replacement for the SSRPC version E-1071-128.

Technical Data

Voltage rating DC 24 V
Operating voltage DC 19.2...36 V
Number of poles 2-pole
Mounting method rail to
EN 50 022-35x7.5

Applications

  • (Steel industry)
  • Automation
