Standard solid state relay in Mini design with high side switch – low side switch

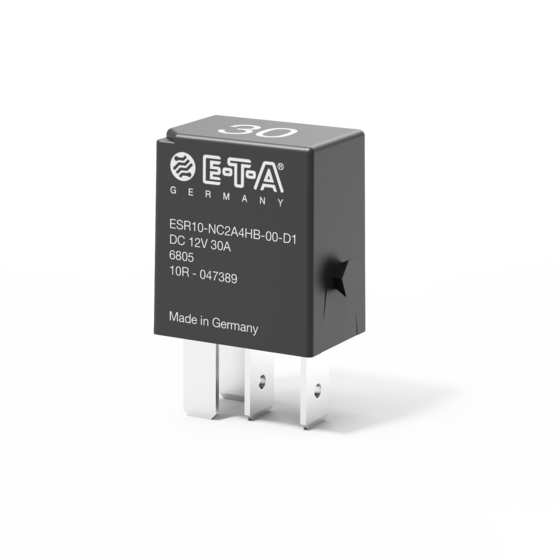

The electronic standard relays type ESR10 Micro are solid state relays for DC 12 V and DC 24 V vehicle applications.
Their benefits include:
The ESR10 Micro relays can easily replace an electro-mechanical relay because polarity of the control input does not matter. The solid state relays are suitable for switching resistive, inductive and capacitive or lamp loads. Unlike electro-mechanical relays they offer frequency control as an option.
|Voltage rating of load||
DC 24 V
DC 12 V
|Physical isolation of load circuit||1 (NO)|
-40° C … +85° C
(17 A ... 105 °C)
|Terminal design||blade terminals for ISO 7588 MICRO socket|
standard automotive relay socket
|Design||Cubic enclosure 22.8 mm x 15.4 mm x 26 mm (without latching noses)|
|Feature||Powerful solid state relay in MICRO design|
|Contact system type||
Datasheet & Explanations
