MPR10
Mechanical Power Relays
Type: MPR20
Description

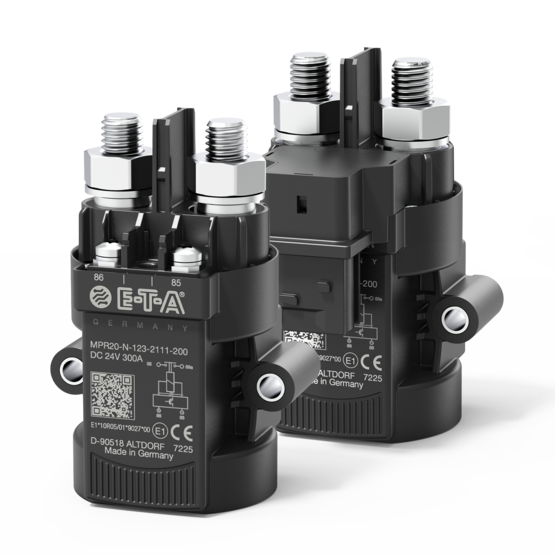

The MPR20 is a monostable electro-mechanical power relay. Its integral electronic control circuitry helps reduce power consumption in the holding power by the factor 10 compared to standard power relays. It can both switch and carry 300 A. In the event of a power disruption, the relay will at once go into its original state due to its monostable design. This provides more safety and reliability. Reduction of holding power and of the pull-in power allows direct connection to the controlgear and provides additional cost reduction and environmental advantages despite a monostable design. By using standard termination technologies and mounting dimensions, the MPR20 can easily and quickly replace conventional relays.
- Reduced fuel consumption and CO2 emission due to an 90 % lower holding power
- Flexible installation for demanding applications due to a robust, waterproof and dust-proof design
- Reduced installation time through direct connection to the controlgear
| Voltage rating |
DC 12 V DC 24 V |
|---|---|
| Operating voltage |
DC 16...32 V DC 9...16 V |
| Continuous current |
100 A 200 A 300 A |
| Number of poles | 1-pole |
| Temperature range | -40 °C …. + 85 °C |
| Terminal design |
Load terminals M8 or M10 Control terminals M4 |
| Mounting method |
M4 connectors side and foot foot flange holes with compression limiter side flange |
| Design | Cylindrical enclosure |
| Feature |
Mechanical power relay for harsh application conditions. Extremely power saving due to a bistable drive, which only needs energy during switching operations. |
| Contact system type | mechanical |
| Certificates | KBA E1 (ECE-R10) |
Applications
- Automobiles
- Commercial Vehicles
- Rail vehicles
- Watercraft & Vehicles
