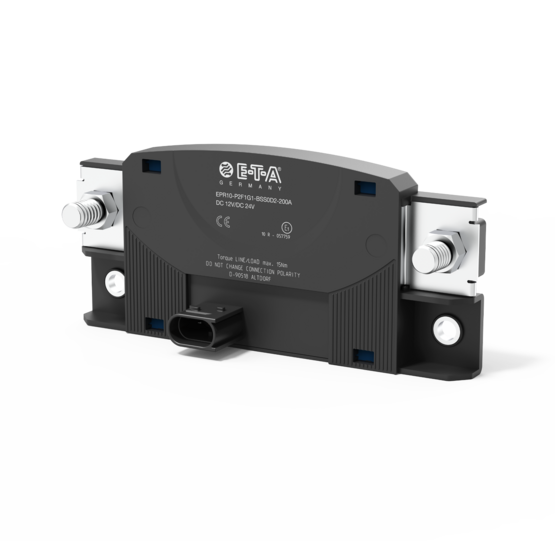

The electronic power relay EPR10 is a solid state relay for high continuous currents. It is suitable for use in utility vehicles and special vehicles where reliability and functional safety are at a premium. At DC 24 V, the EPR10 allows a continuous load of up to 200 A.
The EPR10 is available in two different versions: EPR10-N is a relay and has no protective function. Two performance classes are available (up to 100 A and up to 200 A). EPR10-P is a protective relay and monitors both the load current and the thermal load. In the event of a critical condition, the device will automatically interrupt the circuit and will issue a group fault signal.
Note: We are preparing a separate version for applications where the current can flow in both directions. The present EPR10 design only allows one current direction.
|Voltage rating||DC 12 V/DC 24 V|
|Number of poles||1-pole|
Switch type “low side switch”
Voltage 0 ... 32 V DC
Max. leakage current 20 μA
Max. load current 2 A
|Temperature range||-40 °C … +85 °C|
M8 Terminal studs stainless steel
Tyco HDSCS 3-pole part number 1-1418448-1
1 = GND (chassis)
2 = SF (output group fault)
3 = IN (control input)
|Mounting method||holes with compression limiter|
|Design||Flat module enclosure|
|Feature||Solid state power relay in a flat design with otpional overcurrent detection and disconnection|
|Contact system type||electronic|
