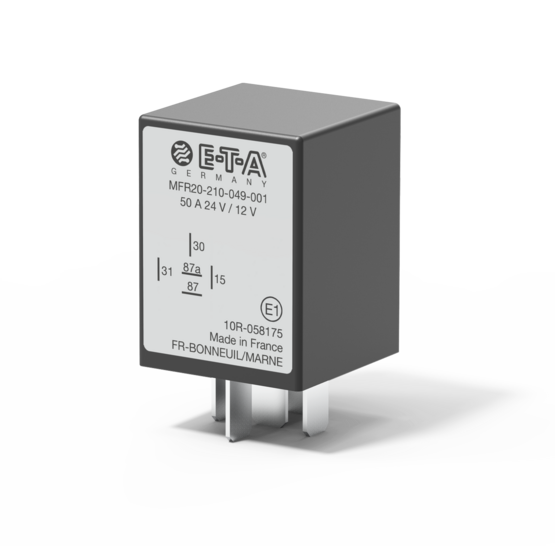

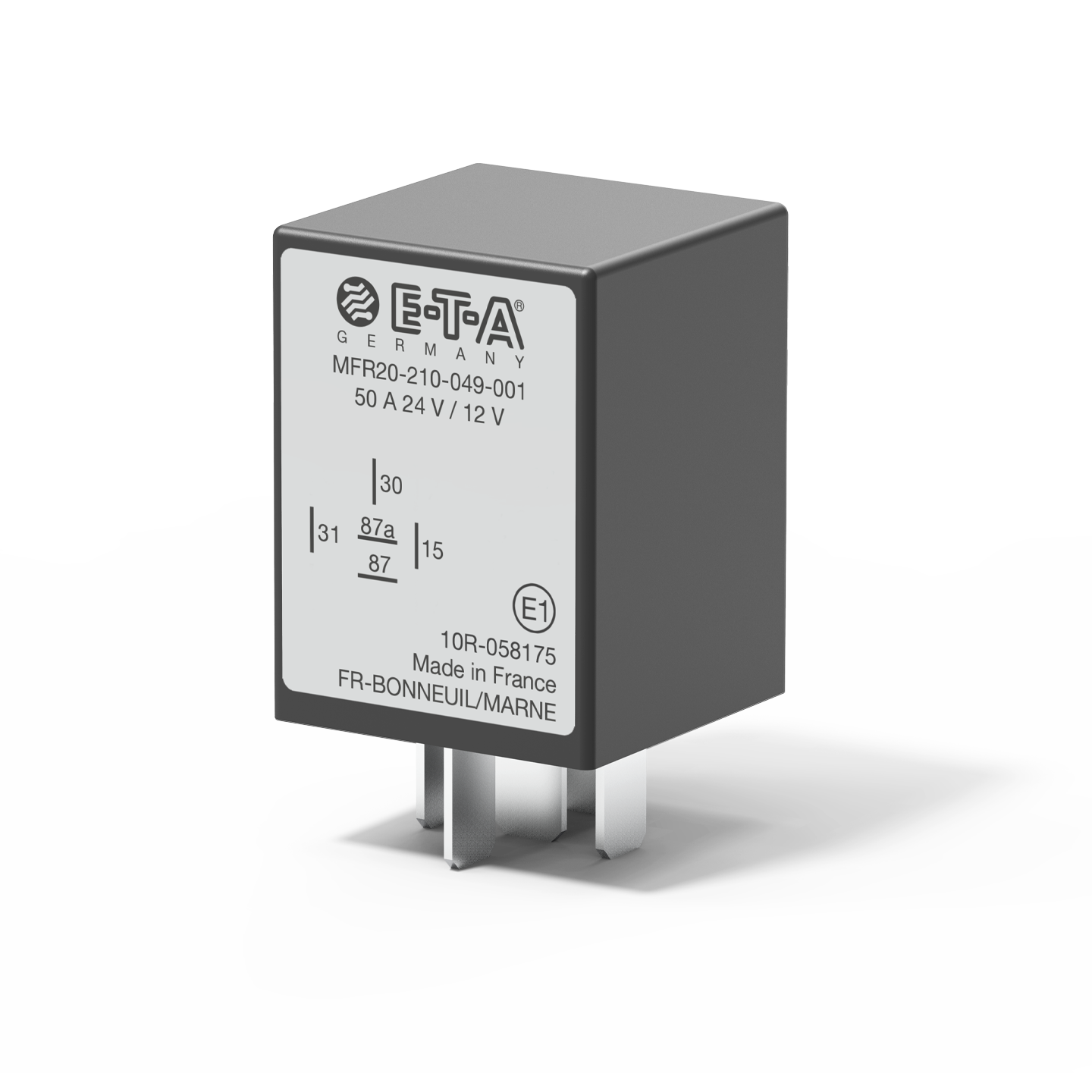

Special solid state relay with diagnostic functionalities and overcurrent protection
The software of the MFR20 multifunctional relay allows many customer-specific adjustments when replacing a standard automotive relay, e.g. monitoring of frequency and voltage, pulse outputs or switching loads on or off.
The MFR20 multifunctional relay features a mechanical contact system for high continuous current.
The MFR20 multifunctional relays are available for DC 12 V and DC 24 V applications and are suitable for standard automotive relay sockets to ISO 7588 (ISO MAXI).
Software and specification of requirements are set up in direct co-operation with our customers.
|Physical isolation of load circuit||2 (1 x NO, 1 x NC)|
|Temperature range||-40 °C … +85 °C|
|Terminal design||ISO 7588 MINI Socket|
standard automotive relay socket
|Design||Cubic enclosure 30 mm x 30 mm x 40 mm|
- multifunctional relay with mechanical contact system and microcontroller
- always sold together with a customer-specific software
|Contact system type||
