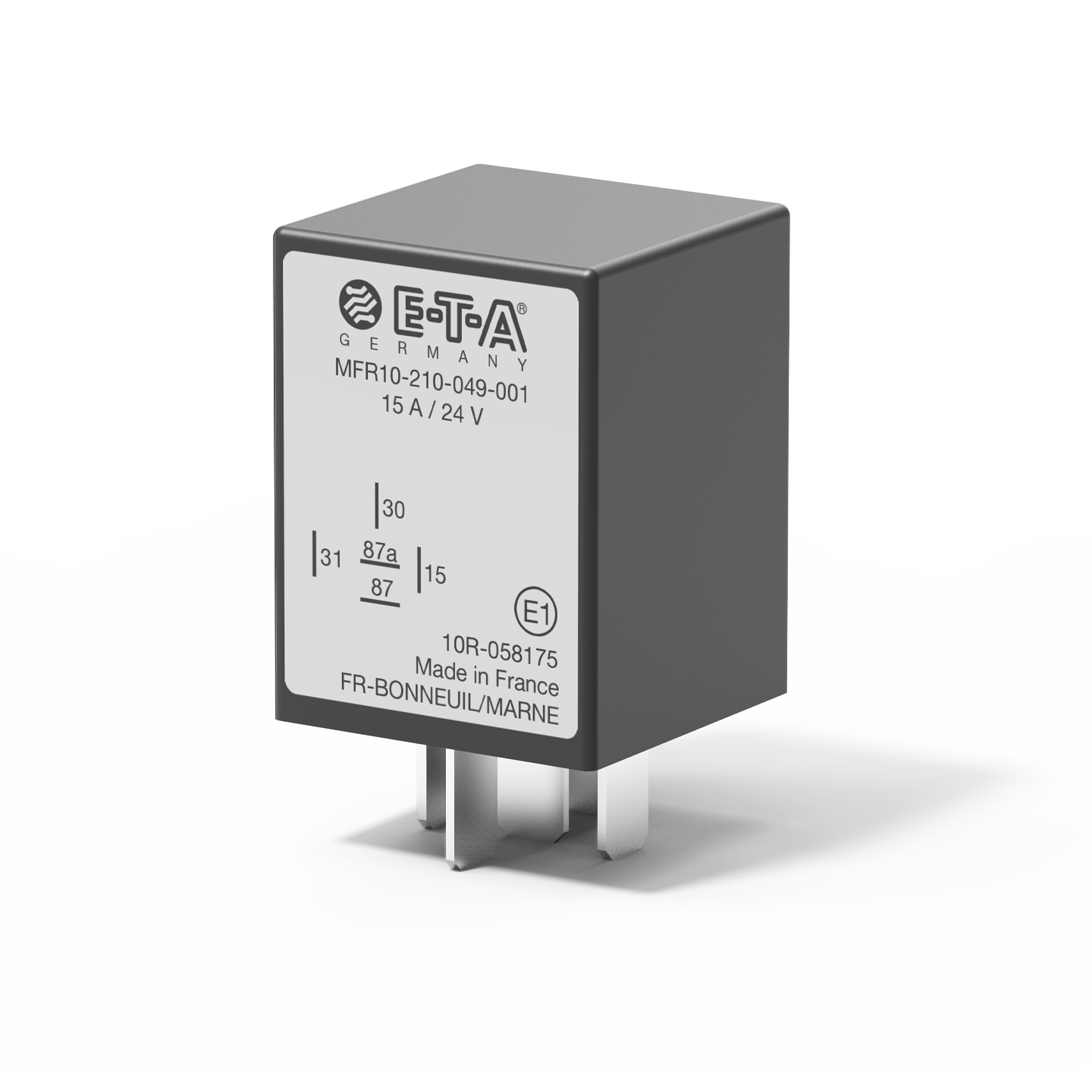

Multifunctional relays with high continuous current
The software of the MFR10 multifunctional relay allows many customer-specific adjustments when replacing a standard automotive relay, e.g. monitoring of frequency and voltage, pulse outputs or switching loads on or off.
The MFR10 features a mechanical contact system which is supplemented by a versatile terminal-pin-combination.
The MFR10 multifunctional relays are available for DC 12 V and DC 24 V applications and are suitable for standard automotive relay sockets to ISO 7588 (ISO MINI).
Software and specification of requirements are set up in direct co-operation with our customers.
DC 12 V
DC 24 V
|Number of poles||2-pole|
|Temperature range||-40 °C … +85 °C|
|Terminal design||ISO 7588 MINI socket|
|Mounting method||standard automotive relay socket|
|Design||Cubic enclosure dimensions 30 mm x 30 mm x 40 mm|
- multifunctional relay with mechanical contact system and microcontroller
- always sold together with a customer-specific software
|Contact system type||mechanical|
Datasheet & Explanations
