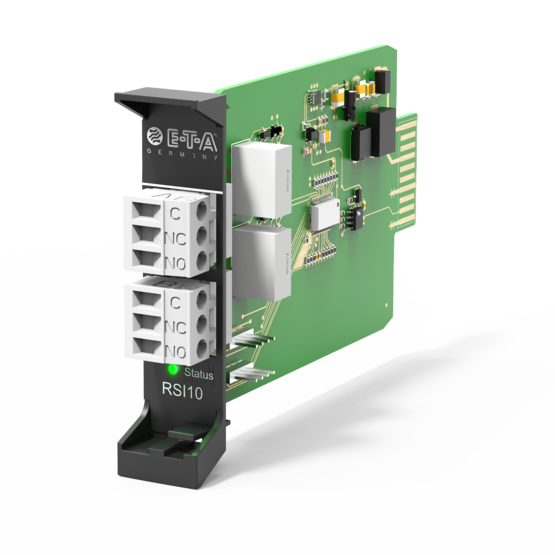

Type RSI10
Description
The RSI10 Remote Signalling Interface ensures reliable and earky detection of critical system conditions. Via an internal bus, it communicates with all circuit protectors installed in ControlPlex® Rack. Should one of circuit protectors disconnect the related load due to an overcurrent or similar, the RSI10 will externally indicate this status via a potential-free group signal, e.g. to a control room. It is the perfect way to minimise downtimes and reduce operational and maintenance costs.
Benefits:
- Early failure detection due external alarm
- Extended potential-free failure signalling (overvoltage, undervoltage, short circuit, overcurrent, excess temperature etc.)
- Enhanced alarm indication on site by means of integral LED
- Ease of retrofit without system downtimes
- Conveniently accessible contact terminals on the front
- Compatible for future system extensions with the RCI10 remote control and monitoring module
Technical Data
| Nennspannung |
DC 20 V … DC 75 V |
|---|---|
| Anschlüsse extern |
potential-free change-over contact |
| Status LED | red, green, blue |
| Umgebungstemperatur | -20 °C...+55 °C (without condensation cf. EN60204-1) |
Applications
- Automation
- Infrastructure & Signalling technology
- Telecom & Datacom
