Modular power distribution system,

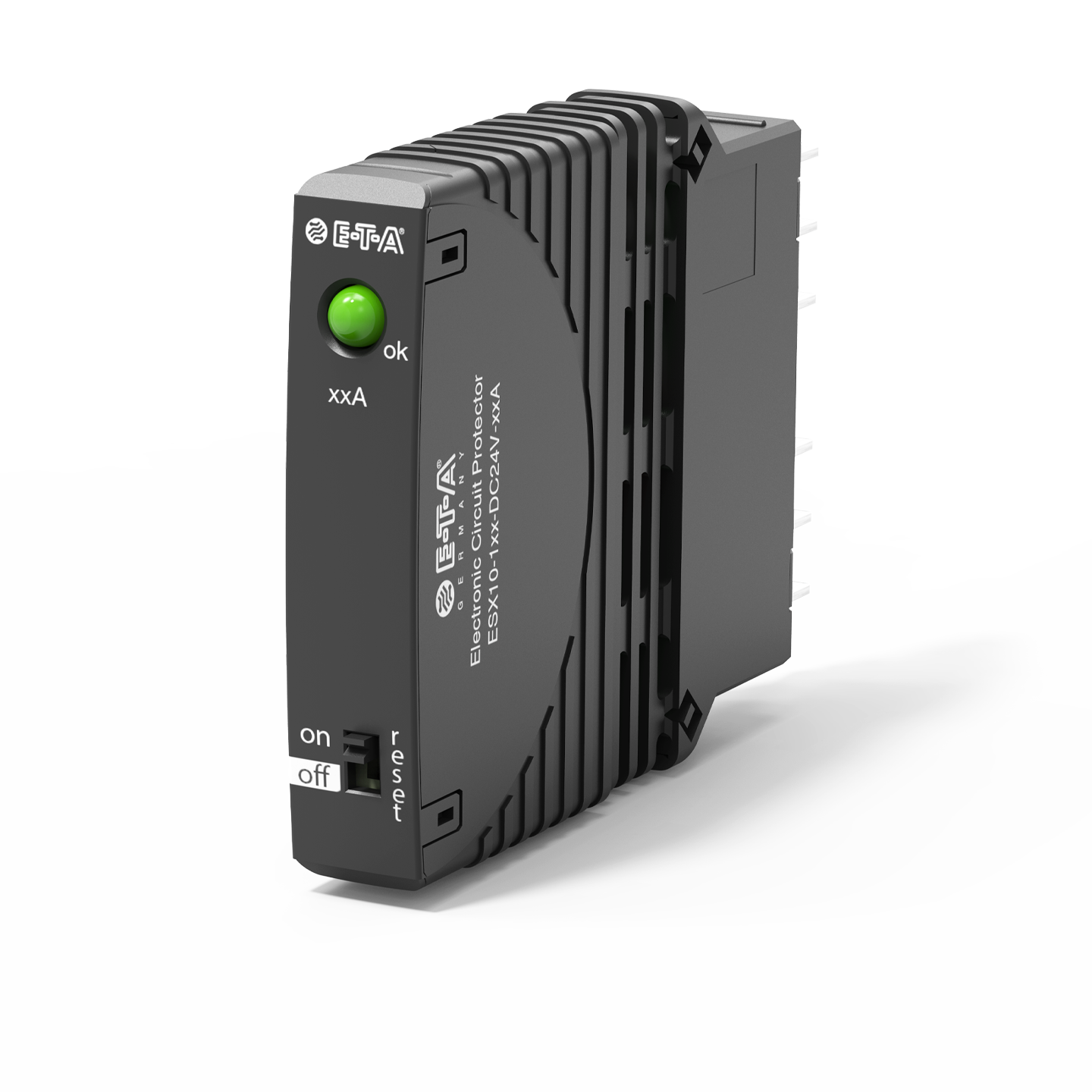

Electronic circuit protector type ESX10 is designed to ensure selective disconnection of DC 24 V load systems.
DC 24 V power supplies, which are widely used in industry today, will shut down the output in the event of an overload with the result that one faulty load in the system can lead to complete disconnection of all loads. As well as an unidentified failure this also means stoppage of the whole system.
Through selective disconnection the ESX10 responds much faster to overload or short circuit conditions than the switch-mode power supply. This is achieved by active current limitation. The ESX10 limits the highest possible current to values between 1.3 to 1.8 times the selected rated current of the circuit protector. Thus it is possible to switch on capacitive loads of up to 20,000 µF lamp loads, but they are disconnected only in the event of an overload or short circuit.
For optimal alignment with the characteristics of the application the current rating of the ESX10 can be selected in fixed values from 0.5 A...16 A. Failure and status indication are provided by a multicolour LED and an integral short-circuit-proof status output or a potential-free signal contact.
The ESX10, with a width of only 12.5 mm, can be plugged into the E-T-A power distribution socket Module 17plus ensuring ease of installation and saving space in control cabinets.
DC 24 V (18...32 V)
|Number of poles||
short circuit: typically 100 ms
overload: typically 3 s
typically 1.8 / 1.5 / 1.3 x IN
DC 30 V/0.5 A max. (N/C or N/O)
DC 10 V/10 mA min. (N/C or N/O)
status output: max. 0.2 A (short circuit-proof)
1 LED green/orange/red: status/fault
blade terminals 6.3 mm
|Mounting method||plug-in type, utilising module 17plus and 18plus|
|Certificates||ATEX 2014/34/EU EN 60079-0/-7/-15 IEC 60079-0/-7/-15 UL 2367 UL508 / CSA C22.2 No. 14 UL 121201|

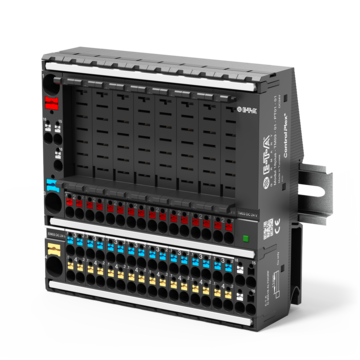

|17plus||power distribution system|
|X 210 588 01-04||
Connector bus links -P10
01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue
|X 211 156 01||screw terminal|
|X 211 157 01/02||
busbar for mounting socket
01 = with terminal
02 = without terminal
|X 222 004 01||end bracket|
|X 222 005 01-03||
01 = blue
02 = red
03 = grey
|Y 303 824 01||insulation sleeving for busbar|
|Y 307 016 01/11||busbar|
|Y 307 754 01||retaining clip|
|Y 307 942 61||label|
|Y 308 729 01||retaining clip|
