Type: 3120-F
Description

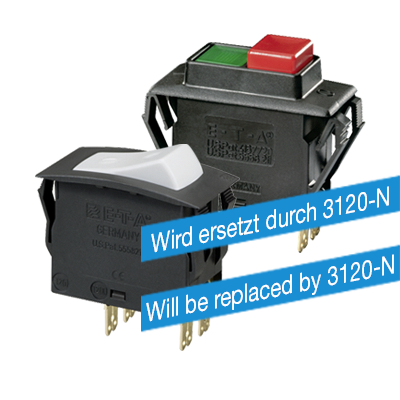

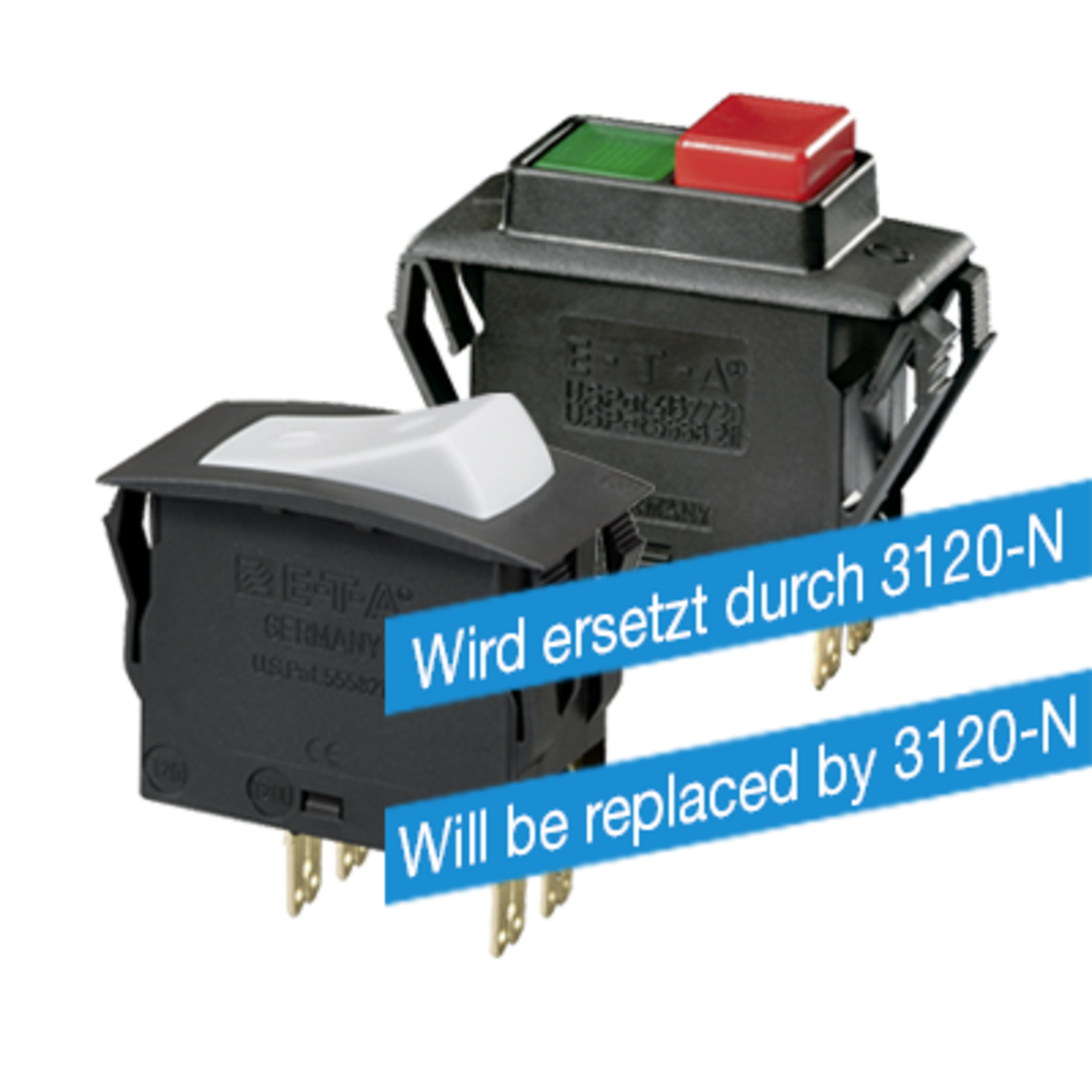

The 3120-F circuit breaker/switch combination is an ON/OFF switch with integral overcurrent protection (S-type TO CBE to EN/IEC 60934). The trip element is a bimetal. Type 3120-F is ideally suited for overload protection of motors, pumps, transformers and cables.
Product characteristics:
- rocker or push button actuation
- single pole and double pole versions
- reliable switching behaviour (positively trip-free)
- convenient snap-in mounting
- international approvals
Options and add-on modules:
- illumination
- water splash protection
- auxiliary contacts
- under voltage trip
- remote trip
- magnetic trip (see thermal-magnetic circuit breakers)
- push-in terminals
- appliance inlet module
This product is also available as switch only (more information see data sheet).
Important information:
By the end of this year, the new design version 3120-N will entirely replace the predecessor 3120-F. The last order date for series 3120-F is the 31 December 2020 (date of last order acceptance).
More information:
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.1A until 20A (up to 30 A to special order, single pole only) |
| Number of poles |
single pole double pole |
| Mounting method |
flange |
| Terminal design |
blade terminals screw terminals |
| Actuation |
push button rocker |
| Auxiliary contacts |
with auxiliary contacts without auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination |
with illumination without illumination |
| Typical life |
0.1...16 A 50,000 operations at 1 x IN, inductive, double pole 0.1...20 A 30,000 operations at 1 x IN, inductive, single pole |
| Interrupting capacity Icn |
0.1...2 A: 10 x IN 2.5...20 A: 150 A single pole 2.5...20 A: 250 A double pole |
| Certificates | VDE, CSA, UL, CCC |
Accessories
| Order number | Description | |
|---|---|---|
| X3120-U | undervoltage release module | |
| X3120-M | magnetic module | |
| X3120-S | aux. contact module | |
| X 221 619 01 | water splash cover, transparent | |
| X 222 143 01 | translucent water splash cover | |
| Y 303 068 01 | insulated cover | |
| Y 303 675 01 |
spacer for -F3/N3... panel thickness < 2 mm |
|
| Y 303 675 02 |
spacer for -F3/N3... panel thickness < 4 mm |
|
| Y 303 676 01 | spacer for -F5/N5... | |
| Y 303 862 01 | terminal adapter |
|
| Y 303 885 31 | blanking piece | |
| Y 304 275 01 | water splash cover black |
|
| Y 307 097 01 | spacer | |
| X3120-A/-B | Appliance inlet module | |
| Y 312 140 01 | plug-in connector |
Applications
- Household, Hobby & Garden Equipment
- Lighting technology
- Medical technology
- Minus DC 48 V
- Rail vehicles
- Telecom & Datacom
- Watercraft & Vehicles
