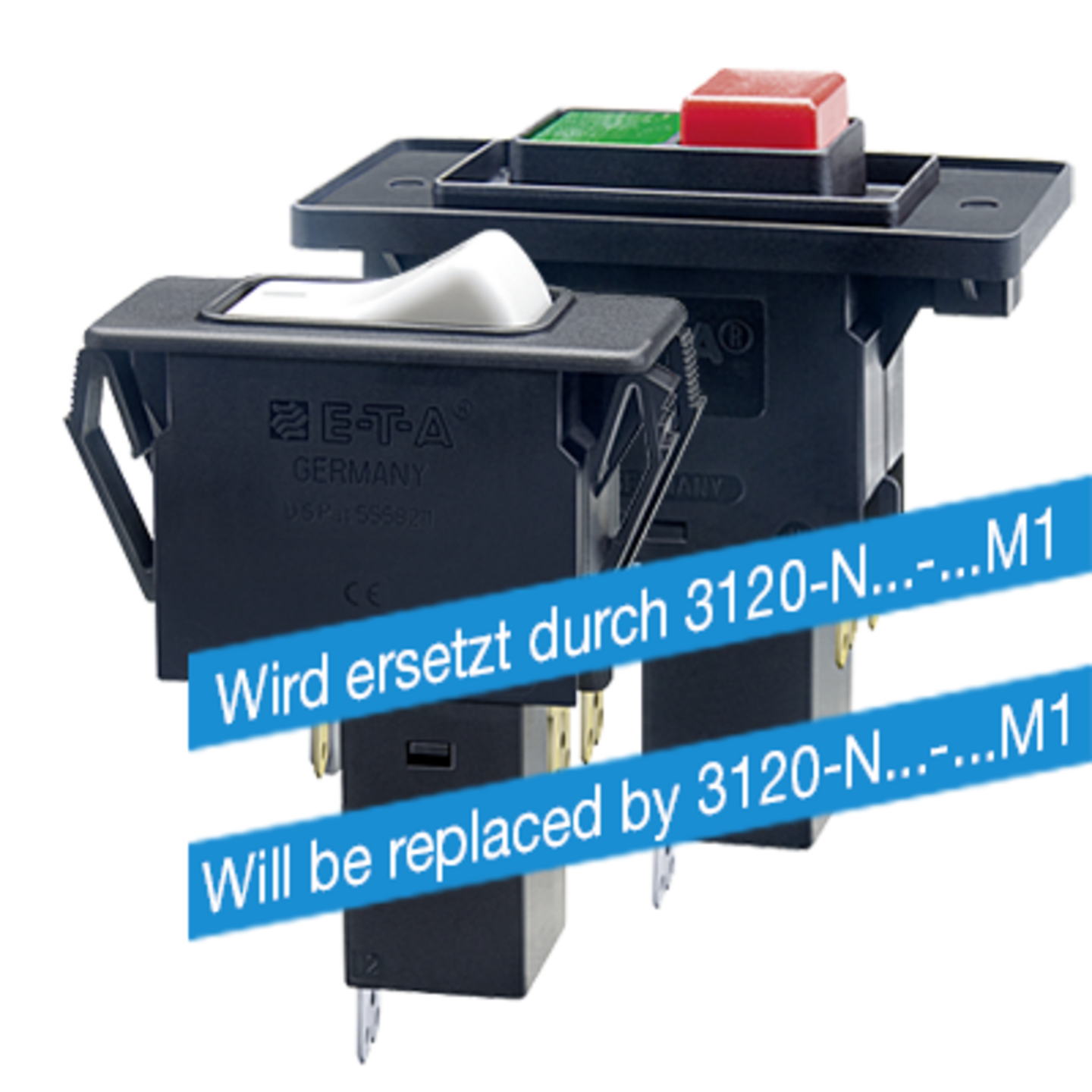

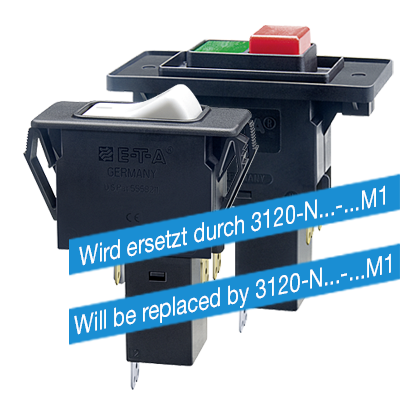

Type: 3120-F...-...M1...
Description
Two pole rocker switch/thermal-magnetic circuit breaker with trip-free mechanism (S-type TM CBE to EN 60934). The addition of a magnetic tripping module to the type 3120 range described in catalogue section Thermal Overcurrent Circuit Breakers extends the choices available (thermal-magnetic protection in pole 1, thermal or no protection in pole 2). All are offered with rocker switch or push button control - two buttons for ON/OFF or one button press-to-reset only, in designs to suit one of three different panel cut-out sizes. Illumination is optional.
Approved to CBE standard EN 60934 (IEC 60934).
Meets the requirements regarding fire resistance of EN 60335-1 : 2007-02 Safety of household and similar electrical appliances.
Technical Data
| Voltage rating |
|
| Current ratings |
from 0.1 A until 16 A |
| Number of poles |
single pole double pole |
| Mounting method |
flange |
| Terminal design |
blade terminals screw terminals |
| Actuation |
manual release rocker |
| Auxiliary contacts |
without auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination |
with illumination without illumination |
| Typical life |
30,000 operations at 1 x IN, inductive, single pole 50,000 operations at 1 x IN, inductive, double pole |
| Interrupting capacity Icn |
0.1...2 A: 100 x IN 2.5...16 A: 250 A double pole or 150 A single pole |
| Certificates | VDE, CSA, UL, CCC |
Accessories
Accessories
| Order number | Description | |
|---|---|---|
| X3120-S | aux. contact module | |
| X3120-M | magnetic module | |
| X3120-U | undervoltage release module | |
| X 221 619 01 | water splash cover, transparent | |
| X 222 143 01 | translucent water splash cover | |
| Y 303 068 01 | insulated cover | |
| Y 303 675 01 |
spacer for -F3/N3... panel thickness < 2 mm |
|
| Y 303 675 02 |
spacer for -F3/N3... panel thickness < 4 mm |
|
| Y 303 676 01 | spacer for -F5/N5... | |
| Y 303 862 01 | terminal adapter | |
| Y 303 885 31 | blanking piece | |
| Y 304 275 01 | water splash cover black | |
| Y 307 097 01 | spacer |
Applications
Applications
- Automation
- Household, Hobby & Garden Equipment
- Medical Equipment
- Telecom & Datacom
