Type 2210-S2

~ 89 mm

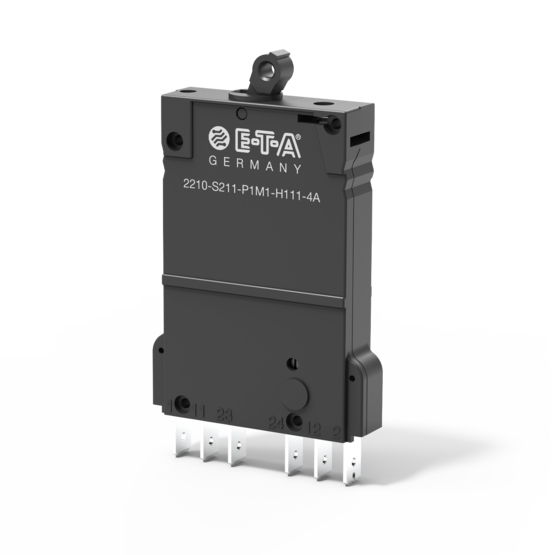

Typ 2210-S2 von E-T-A: Ein- und mehrpolige, thermisch-magnetische Schutzschalter mit Kipphebel-betätigung.

Description

Data sheet

One, two and three pole thermal-magnetic circuit breakers with trip-free mechanism and toggle actuation (S-type TM CBE to EN 60934/IEC 934). Designed for panel or plug-in mounting. Available with auxiliary contacts (1 x N/O, 1 x N/C) for status signalling. Two and three pole models are internally linked to ensure that both/all poles trip in the event of an overload on one pole, even if the actuator is held in the ON position. A choice of characteristic curves further extends the range of applications possibilities for these CBEs. Special auxiliary contact versions for industrial atmosphere and low voltages (e. g. 5 V) available on request.

Approved to CBE standard EN 60934 (IEC 60934).

Technical Data

Voltage rating
  • 3 AC 433 V (50/60 Hz)
  • AC 250 V
  • DC 65 V (higher voltage to special order)
  • UL: AC 277 / 480 V
Current ratings from 0.1 A up to 25 A
Number of poles double pole
single pole
three pole
Mounting method socket
Terminal design blade terminals
Actuation manual release
toggle/baton
Auxiliary contacts with auxiliary contacts
without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 10,000 operations at 1 x IN, inductive
Interrupting capacity Icn 0.1...5 A: 400 A

6...25 A: 800 A

0.1...16 A 2 500 A (DC 32 v)
Certificates GL, VDE, CSA, UL

Accessories

Order number Description
17plus

power distribution system
17-P10-Si/-20025

sockets
17-P70-Si/-20025

sockets
63-P10-Si

socket
X20040901

adapter for socket 16 for

track mounting
X21058801-04

Connector bus links -P10

01 = 1.5 mm2 brown



02 = 2.5 mm2 black



03 = 2.5 mm2 red



04 = 2.5 mm2 blue
X21058901/02

Connector bus links -K10

01 = 2.5 mm2 black



02 = 1.5 mm2 brown
X21111702

splash cover transparent for

1-pole types
X21111801

splash cover transparent for 2- and 3-pole types
X21115701/02

busbar for mounting socket

01 = with terminal



02 = without terminal
X22161701

toggle guard
X22176001

busbar 50 A, 6-way for socket 17-P10-Si
X22176011

busbar 50 A, 6-way for socket 63-P10-Si
X22254001

busbar
Y30297421

retaining clip
Y30382401

insulation sleeving for busbar

Applications

  • (Steel industry)
  • Automation
  • Automobile production
  • Chemical, Oil & Gas
  • Mechanical engineering
  • Minus DC 28 V
  • Minus DC 48 V
  • Minus DC 72 V
  • Pharmaceutical & Food
  • Power Engineering AC 240 V
  • Power Engineering DC 24 V
  • Rail vehicles
  • Telecom & Datacom
