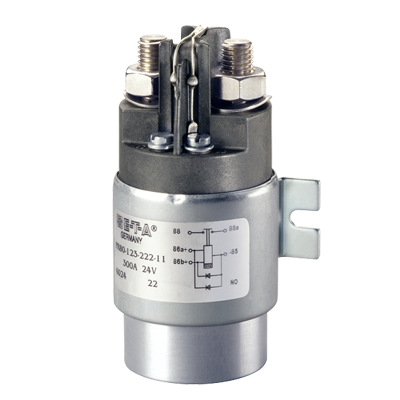

Type: PR80

Bistable power relay for single pole disconnection with a variety of versions available. Due to the possible combinations of the different configurations as well as due to different modes of mounting the power relay is suitable for many applications. In release condition its power consumption is zero and it is therefore particularly suited to battery-powered systems.

Data sheet

Technical Data

Voltage rating:
  • DC 12 V
  • DC 24 V
Current ratings:
from 100A to 300A
Typical life:
rated load Ω: 20,000 cycles (at DC 12 / 24 V)
mechanically: 40,000 cycles
Number of poles:
  • single pole
Mounting method:
  • flange
Terminal design:
  • screw terminals
Actuation:
  • without actuation

Accessories

Order numberDescription
X 223 030 01suppressor diode

Applications

  • Watercraft & Vehicles
  • Automobiles
  • Commercial Vehicles
  • Telecom & Datacom
  • Minus DC 48 V
