Type 1140-F

~ 46 mm

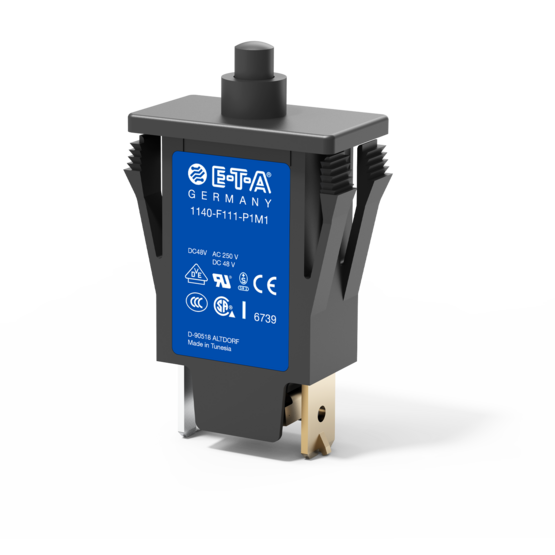

Typ 1140-F von E-T-A: Einpoliger, thermischer Schutzschalter in Kleinbauweise mit zuverlässigem Schaltverhalten.

Description

Miniaturised single pole thermal circuit breaker with push-to-reset tease-free, trip-free, snap action mechanism (R-type TO CBE to EN 60934), snap-in panel mounting.

For lower current ratings see type 105.

Approved to CBE standard EN 60934 (IEC 60934).

Technical Data

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
Current ratings from 3.5 A until 16 A
Number of poles single pole
Mounting method flange
Terminal design blade terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 3.5...8 A: 1,000 operations at 2 x IN, resistive

9...16 A: 100 operations at 2 x IN, inductive
Interrupting capacity Icn 3.5...8 A: 8 x IN

9...16 A: 120 A
Certificates VDE, CSA, UL

Accessories

Order number Description
X20128501

splash cover transparent

Y30019201

hex nut

Y30711702

knurled nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
