Type: 3200

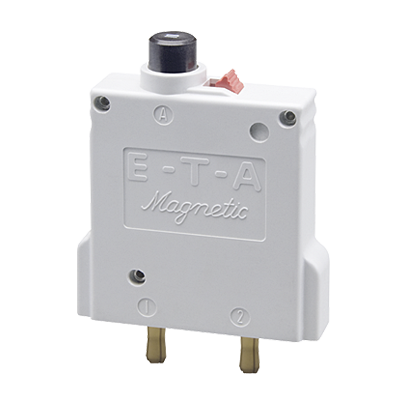

Single pole thermal-magnetic circuit breaker with tease-free, trip-free, press-to-reset, snap action mechanism and additional manual release (M-type TM CBE to EN 60934). Designed for plug-in mounting with E-T-A sockets 10 and 16.
Approved to CBE standard EN 60934 (IEC 60934).

Data sheet

Technical Data

Voltage rating:
  • AC 240 V (50/60 Hz)
  • DC 28 V
Current ratings:
from 0.05 A to 25 A
Typical life:
500 operations at 1 x IN, inductive
4,000 operations at 1 x IN, resistive
Interrupting capacity Icn:
0.05...0.8 A: self-limiting
1...2 A: 200 A
2.5...25 A: 400 A
Number of poles:
  • single pole
Mounting method:
  • socket
Terminal design:
  • blade terminals
Actuation:
  • manual release
  • push button
Auxiliary contacts:
  • without auxiliary contacts
Water splash protection:
  • without water splash protection
Illumination:
  • without illumination

Accessories

Order numberDescription
10R-P10/-K10/-A10mounting sockets
16socket
X 200 409 01adapter for socket 16 for track mounting
X 200 800 01terminal for mounting rack for sockets 10...
X 210 588 01-04Connector bus links -P10
01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue
X 210 589 01/02Connector bus links -K10
01 = 2.5 mm2 black
02 = 1.5 mm2 brown
Y 301 166 01/02busbar
01 = 4-way
02 = 2-way
Y 301 477 01blanking plug
